ICON 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500, 1.5-3.5" Lift, Stage 1 Suspension System
- ICON Vehicle Dynamics
- SKU:K73061
$2,325.55
34 in stock
Recommended add-ons
ICON 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500, 1.5-3.5" Lift, Stage 1 Suspension System
$2,325.55
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

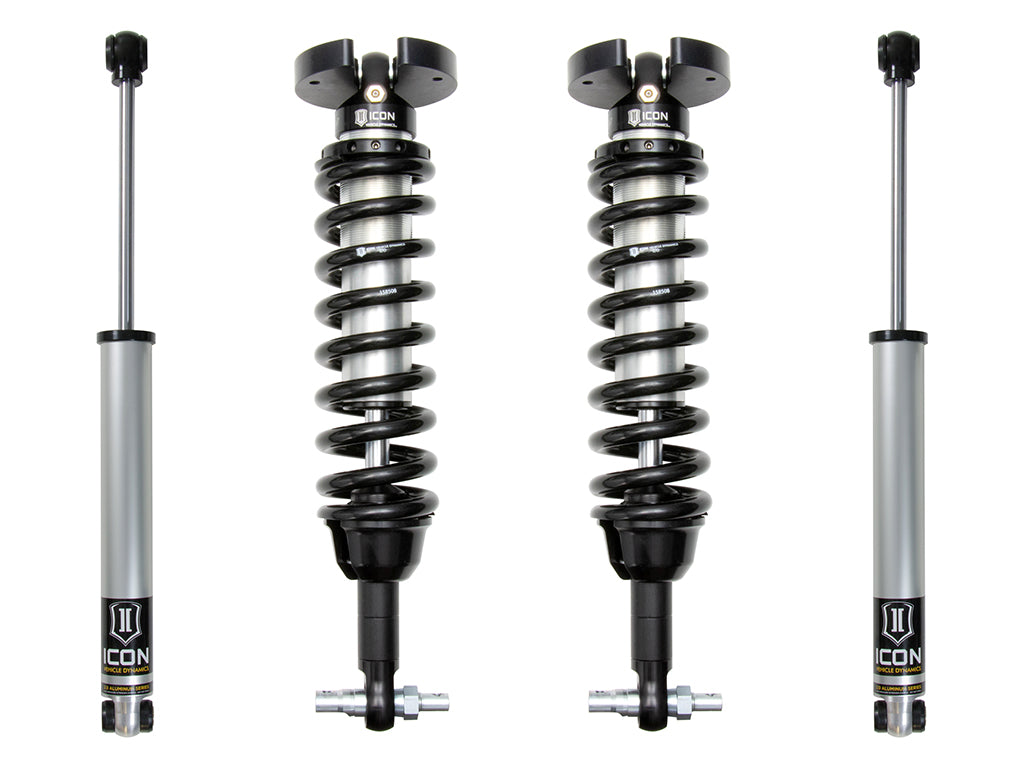

ICON Vehicle Dynamics 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.5-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Adjustable coilovers provide 1.5-3.5” of front lift height
- Increased lift height allows for fitment of larger and more aggressive tires
- Up to 25% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- 2.5 Series coilovers feature corrosion resistant CAD plated shock body with 7/8" shaft
- 2.0 Aluminum Series rear shocks feature corrosion resistant anodized shock body with 5/8" shaft
- 7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
- Direct bolt-in design makes for a simple and straightforward installation
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103419237 |
| Proxy Number | 73061 |
| Shipping Width | 13.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 58.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires (Silverado): 35"x12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Tires (Sierra): 34"x12.00" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #48: Slight Modifications To Factory Shock Mounts May Be Required
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #324: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 1.5-3.5" over stock. Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1.5" over stock.
- APPLICATION NOTE #325: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1-3" over stock. Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1" over stock.
- APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022
- APPLICATION NOTE #335: Only fits models equipped with coil front springs
- APPLICATION NOTE #336: Not compatible with models equipped with 4-cylinder engine
- APPLICATION NOTE #337: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
- APPLICATION NOTE #348: Included rear shocks are compatible with 0-2" of rear lift on most models. Rear shocks are not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4.
- APPLICATION NOTE #349: Recommend replacing OE rear blocks on Silverado 1500 Trail Boss and Sierra 1500 AT4 models with 1" rear blocks if level stance is desired. See ICON part numbers 51001 and 52050.
