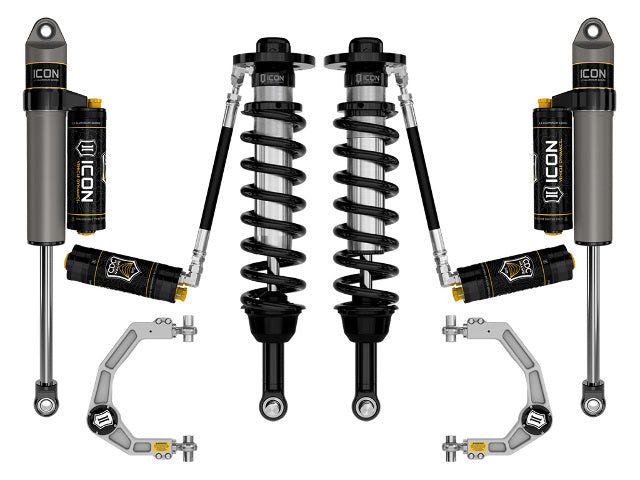

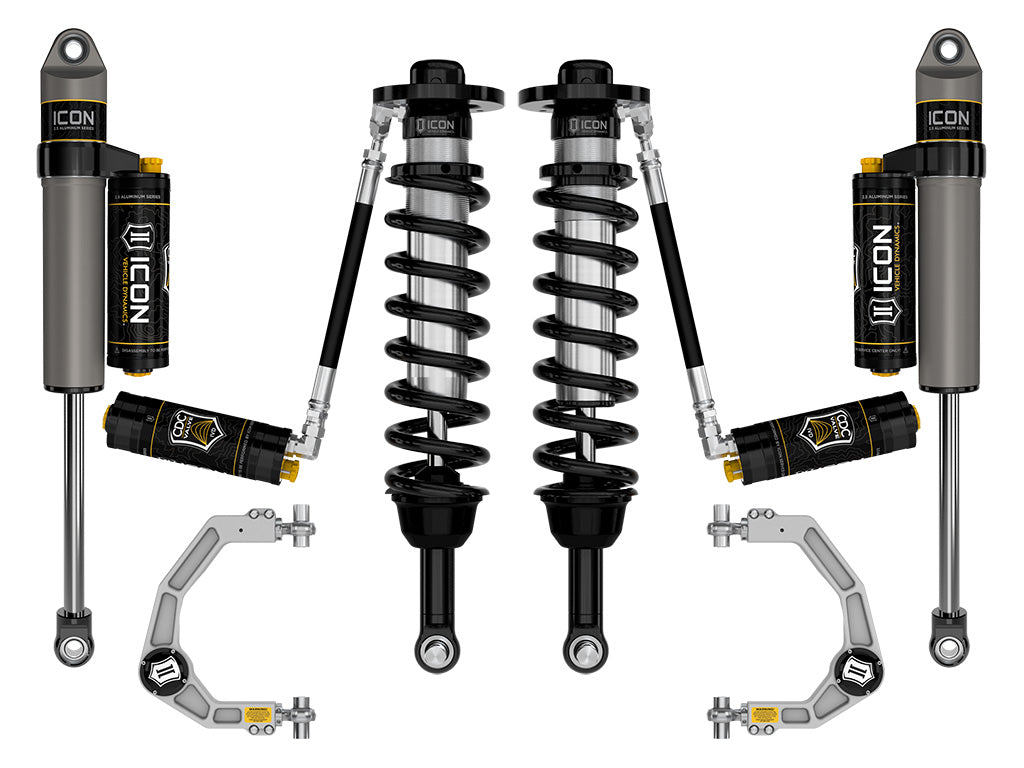

ICON 2021-2024 Ford F-150 4WD, 2.75-3.5" Lift, Stage 4 Suspension System, Billet, CDCV
- ICON Vehicle Dynamics
- SKU:K93134
$5,243.84$5,506.04
4% off
Out of stock
Recommended add-ons
ICON 2021-2024 Ford F-150 4WD, 2.75-3.5" Lift, Stage 4 Suspension System, Billet, CDCV
$5,243.84$5,506.04
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON suspension systems lift your Ford F-150 4WD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
- Adjustable coilovers offer 2.75-3.5" of front lift height over stock
- 2.5 Series front coilovers with remote reservoirs for improved shock cooling
- Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- High strength alloy CNC machined lower bar pin
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103423814 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 110.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
- APPLICATION NOTE #130: Equipped With Dynamic Bending Headlamps Purchase Part# 611071
- TECH NOTE: Only compatible with 4-wheel drive (4WD) models
- TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
- TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25" over stock
- TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3" over stock
- TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
- TECH NOTE: Not compatible with models equipped with BlueCruise
- TECH NOTE: Not compatible with models equipped with OnBoard Scales
- TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
