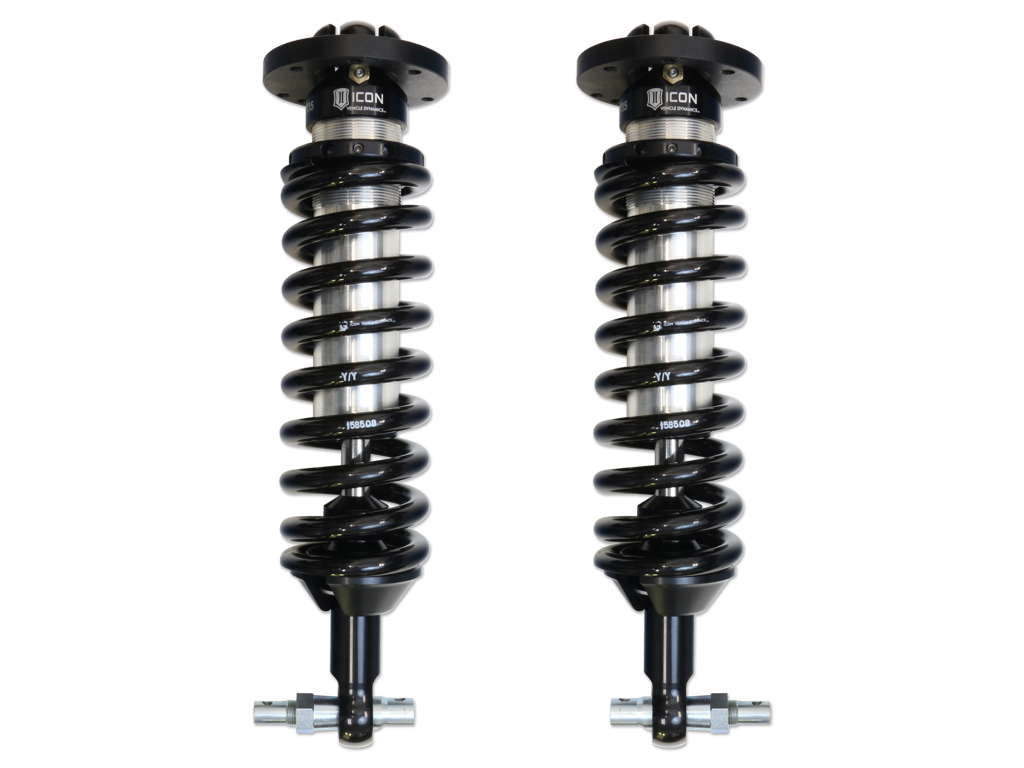

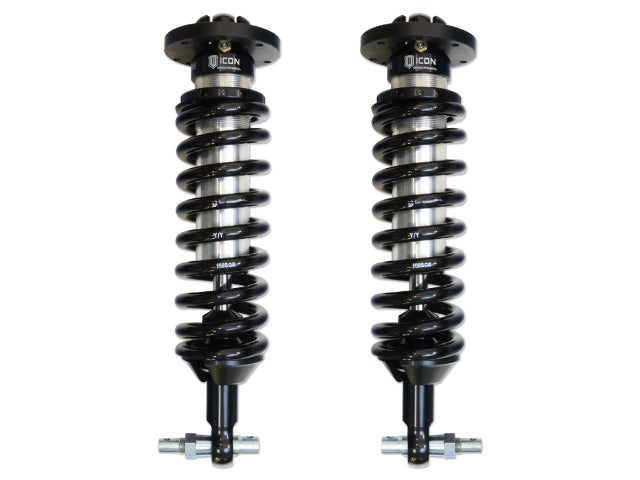

ICON VEHICLE DYNAMICS 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT

ICON 2007-18 GM 1500, 1-3” Lift, Front, 2.5 VS Coilover Kit

Product Details

These coil-overs are valved specifically for the new body style (GMT 900 Platform) Chevrolet and GMC half ton, 2WD and 4WD applications. They not only drastically improve the off road characteristics of the vehicle, but increase the on road handling and performance as well. These shocks add an additional inch of wheel travel when used in conjunction with an ICON Vehicle Dynamics Arm (PT# 78600). They also offer an additional amount of lift height compared to our standard travel coil-over shocks.

Less body-roll than stock truck
2.5" Diameter shock Body
Lifetime guarantee on coil-springs
Clears 33" Tall Tires
Internal Nitrogen Reservoir for Compact Design and Optimum Performance

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms.
TECH NOTE: Not compatible with models equipped Magnetic Ride Control
TECH NOTE: Not compatible with Hybrid models

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms. TECH NOTE: Not compatible with models equipped Magnetic Ride Control TECH NOTE: Not compatible with Hybrid models
UPC	00840103405964
Body Diameter	2.5
Remote Reservoir	NO
Adjustable Height	yes
Spring Color	Black
Adjustable Damping	NO
Shaft Diameter	0.875
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Width	13.00 in
Length	26.00 in
Depth	7.00 in
Weight	47.0000 lb
