CS-DPT25-1419-D-AR

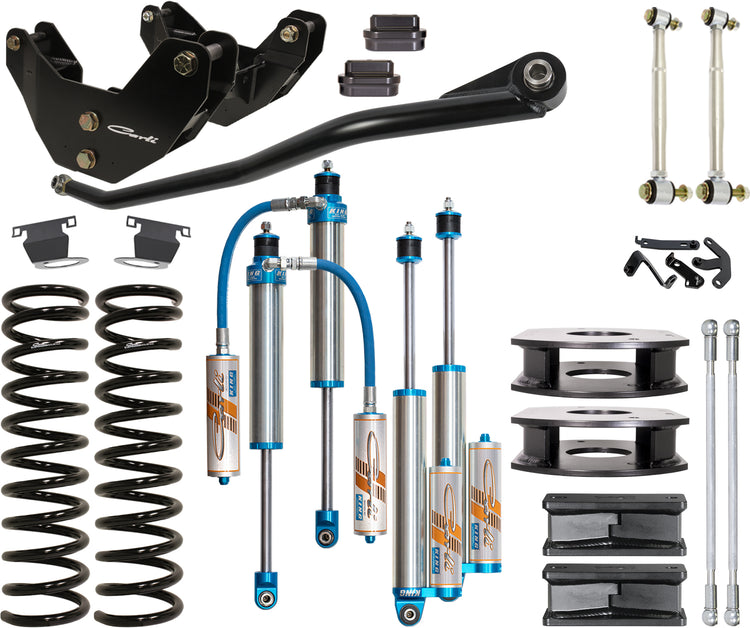

Carli Pintop 2.5 Leveling System, Base, 2.5” Lift, 2014-22 Ram 2500, Air Rear

Product Details

The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

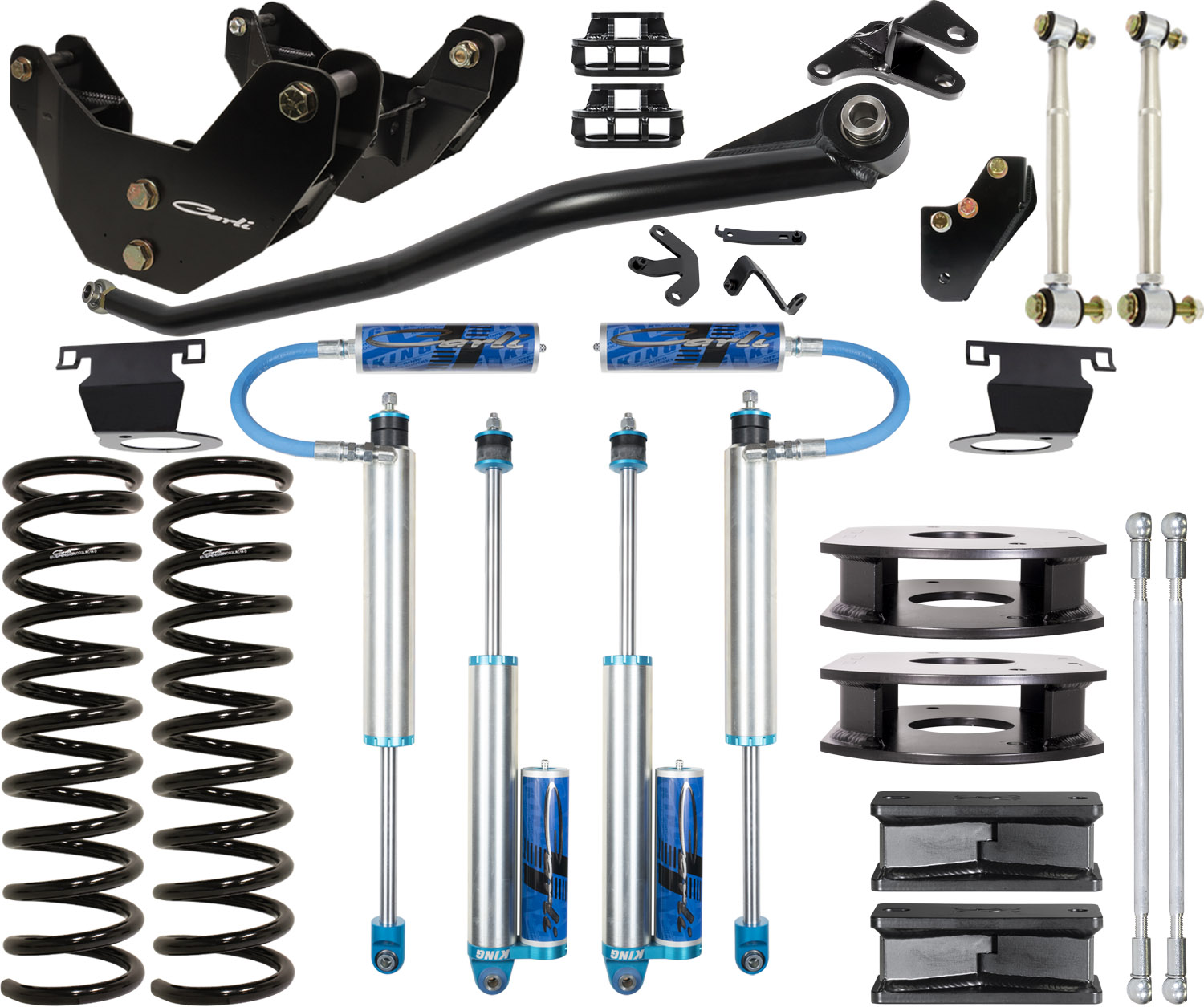

System includes multi rate front coils, rear air ride components, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links and rear track bar drop.
Allows for fitment of 37" tires.
Compatible ONLY with factory rear air ride trucks.

Technical Notes

Fits air ride rear suspension only
Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419
Radius Arms: CS-DFRA-14
Steering Stabilizer - High mount: CS-DHMSS-14
Steering Stabilizer - Low mount: CS-DLMSS-14
Ball Joints: CS-DBJP-14
Front Diff Guard: CS-DFDG-14

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2014-2023)

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Fits air ride rear suspension only Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419 Radius Arms: CS-DFRA-14 Steering Stabilizer - High mount: CS-DHMSS-14 Steering Stabilizer - Low mount: CS-DLMSS-14 Ball Joints: CS-DBJP-14 Front Diff Guard: CS-DFDG-14
UPC	883584145844
ProxyNumber	14584
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	202.0000 lb
