Yukon 4340 Chrome Moly alloy right hand rear axle for Model 35 heavy duty (drum brakes) | YA WM35C-27-R-HD | RANDYS Worldwide

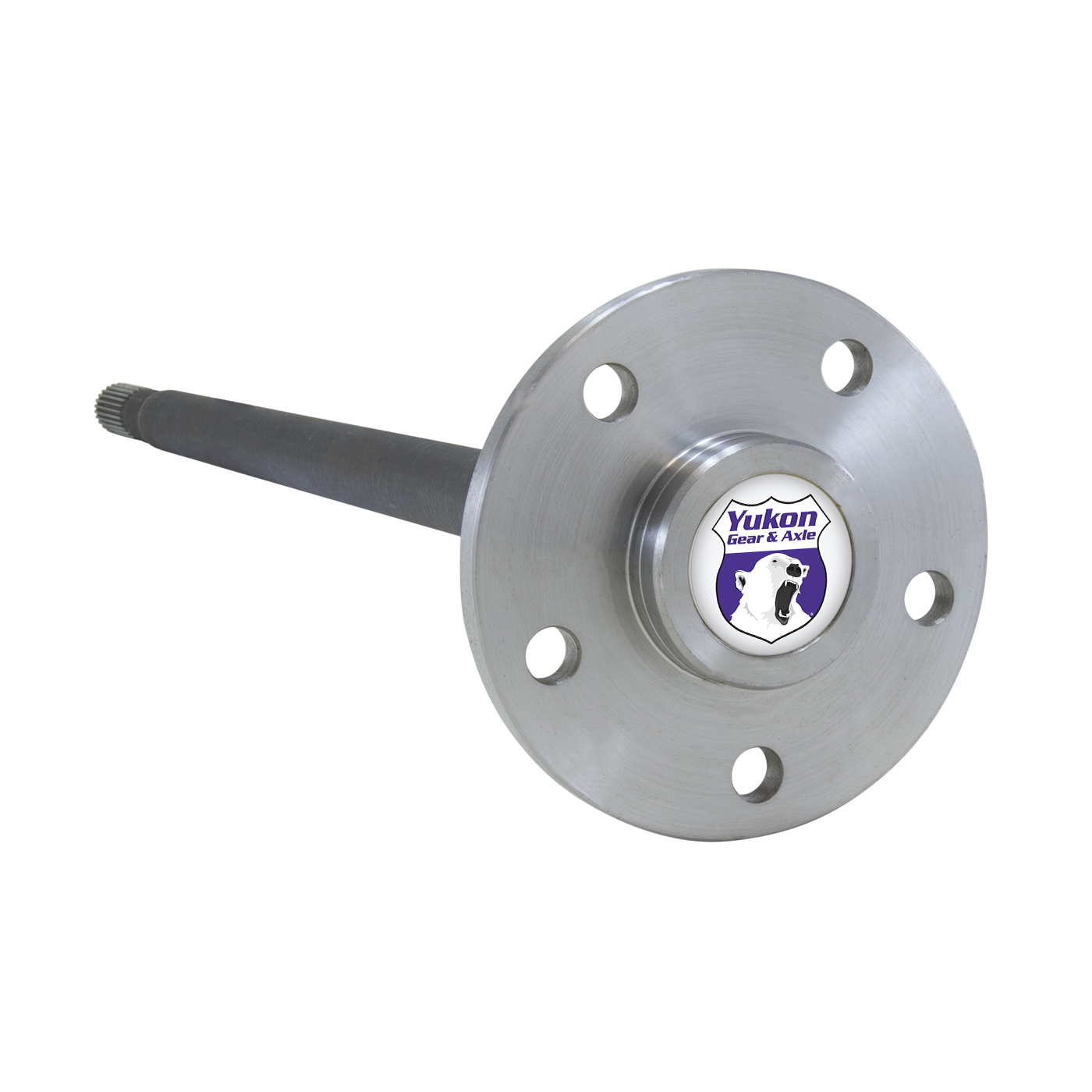

Yukon Chromoly Rear Axle, Model 35 HD w/drum brakes, RH, 27 Spline, 29-1/4" Long

Product Details

Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Fits Jeep AMC Model 35 HD with C-clips
29 1/4" long
27 spline
Right hand side
4340 chromoly construction

Technical Notes

This axle does not come with ABS ring. Re-use old ABS ring. This axle requires screw-in axle studs (part number YSPSTUD-010). Double drilled flange for 5x4.5" & 5x5.5" bolt patterns

Warranty Information

Warranty information unavailable

Compatible Make / Model

Compatible Differentials

AMC Model 35 Rear

Specification

Brand	Yukon Gear & Axle
Prop65 Warning	Not Applicable
Keywords	1/4,27spl,29,4340,AX:D35-R-RH-27C-CHROMO,AXLE,C/CLIP,DRUM,H2204R,HD,M35,NO12,ABS12,RING,REAR,Requires12,Screw12,in12,studs,RH,SHAFT,YA
Technical Notes	This axle does not come with ABS ring. Re-use old ABS ring. This axle requires screw-in axle studs (part number YSPSTUD-010). Double drilled flange for 5x4.5" & 5x5.5" bolt patterns
Hub Diameter	4.50
Float Type	C-Clip
Bearing Diameter	1.400
UPC	883584213062
ProxyNumber	21306
Width	4.00 in
Length	30.00 in
Depth	4.00 in
Weight	18.1000 lb
