ICON 2008-2024 Ford F-250/F-350 Super Duty, Rear Leaf Spring Expansion Pack

Product Details

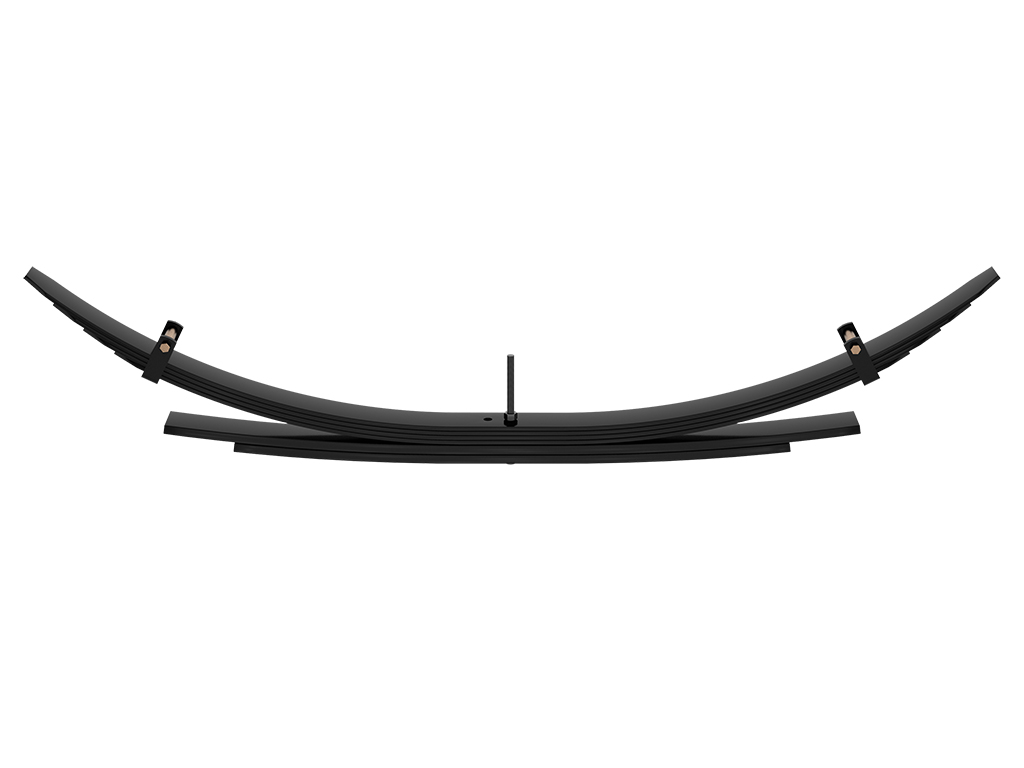

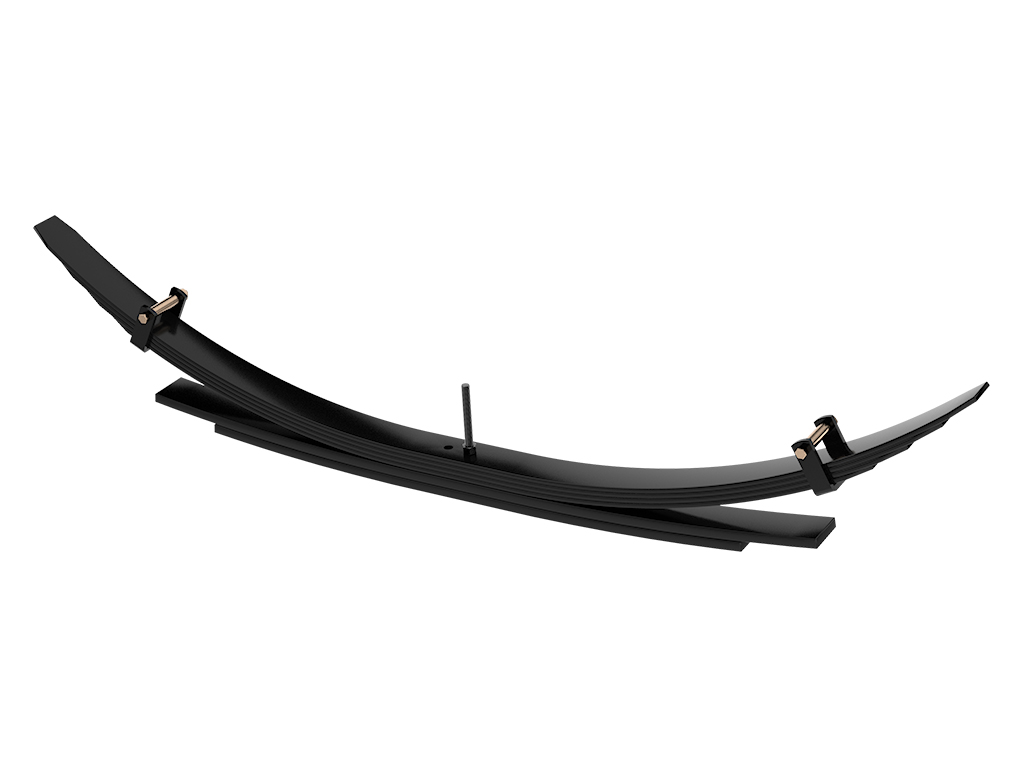

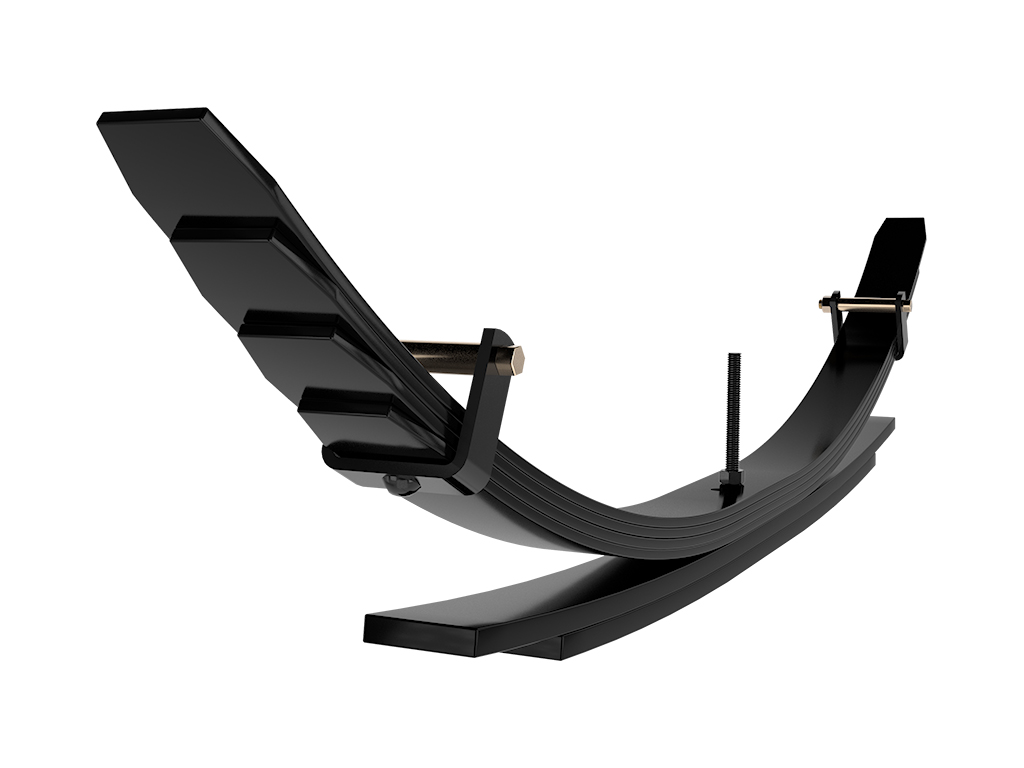

ICON's 2" Rear Leaf Expansion Pack provides increased suspension lift and better ride quality for lifted 2008-2024 Ford F-250/F-350 Super Duty pickup trucks. The Expansion Pack is designed to replace and improve the center leaves of the stock leaf spring pack while retaining the factory main leaf. This makes the Expansion Pack both cost-effective and an easier installation as it doesn't require complete removal of the leaf spring main leaf from the spring hanger and shackle. The additional leaves included in the pack are designed to optimize ride quality and reduce axle wrap compared to lift blocks. The design also shifts the overload transition point to improve small bump compliance.

Provides 2” of rear lift when installed with OE rear blocks
Reduces axle wrap compared to lift blocks
Offers improved ride quality compared to OE leaf springs
Moves overload transition point further away for better small bump compliance
More cost effective than a full leaf pack
Retains factory main leaf for easier installation than a full leaf pack

Technical Notes

TECH NOTE: Depending on year and block configuration installer must use the appropriate U-bolts (not included in kit)
TECH NOTE: Provides 2" of rear lift when installed with OE rear blocks
TECH NOTE: When installing in conjunction with 2.5-3" front lift ICON recommends replacing OE rear blocks with 1" rear blocks (ICON part # 191201) and 12" U-bolts (ICON part #s 37004 or 67004, depending on year). 2" bump stop spacers will also be required (ICON part # 61002). Most F-250s will net .5" of rear lift over stock while most F-350s will net rear ride height .5" lower than stock.
TECH NOTE: Not recommended for Ford F-350 with dual real wheels
TECH NOTE: Sold as single leaf spring expansion pack (qty of 2 required per vehicle)

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Depending on year and block configuration installer must use the appropriate U-bolts (not included in kit) TECH NOTE: Provides 2" of rear lift when installed with OE rear blocks TECH NOTE: When installing in conjunction with 2.5-3" front lift ICON recommends replacing OE rear blocks with 1" rear blocks (ICON part # 191201) and 12" U-bolts (ICON part #s 37004 or 67004, depending on year). 2" bump stop spacers will also be required (ICON part # 61002). Most F-250s will net .5" of rear lift over stock while most F-350s will net rear ride height .5" lower than stock. TECH NOTE: Not recommended for Ford F-350 with dual real wheels TECH NOTE: Sold as single leaf spring expansion pack (qty of 2 required per vehicle)
UPC	00840103423036
Maximum Lift	2
Material	Steel
Bushings Included	No
Color	Black
U Bolts Included	No
Add-On Part	37003 - 99-10 FSD REAR 15" U-BOLT KIT
Width	48.00 in
Length	54.00 in
Depth	10.00 in
Weight	85.0000 lb
