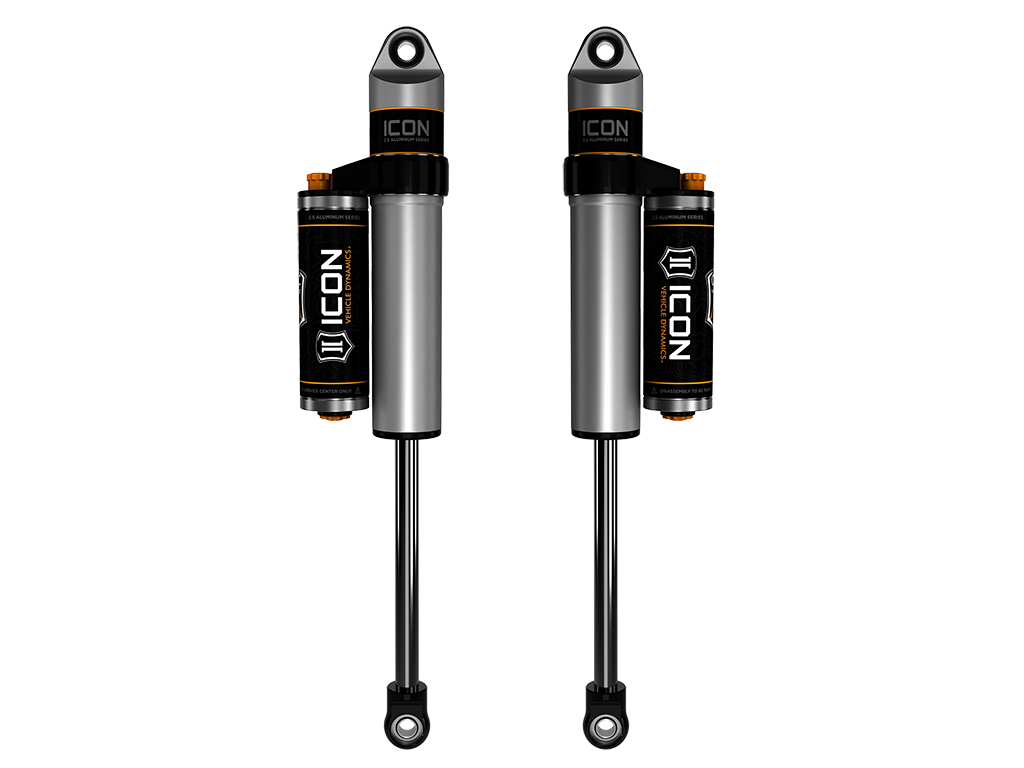

ICON VEHICLE DYNAMICS 09-18 RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR

Product Details

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 100% Rebuildable
  • 100% Revalveable
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

Technical Notes

  • TECH NOTE: Compatible with 0-3" of rear lift
  • Not compatible with models equipped with OE air suspension
  • TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • TECH NOTE: Compatible with 0-3" of rear lift
  • Not compatible with models equipped with OE air suspension
  • TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models
UPC 00840103401034
Adjustable Yes
Shaft Diameter 0.875
Cylinder Color Silver
Shaft Material Chrome
Cylinder Material Aluminum
External Reservoir Yes
Service Parts 191016 - 7.5" FINNED RESI UPGRADE KIT
Add-On Part 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Width 10.00 in
Length 39.00 in
Depth 9.00 in
Weight 21.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2009-18 Ram 1500, 0-3” Lift, Rear, 2.5 VS Piggy/CDCV Shocks, Pair

217715CP

7 in stock

$1,448.95 $1,304.06
