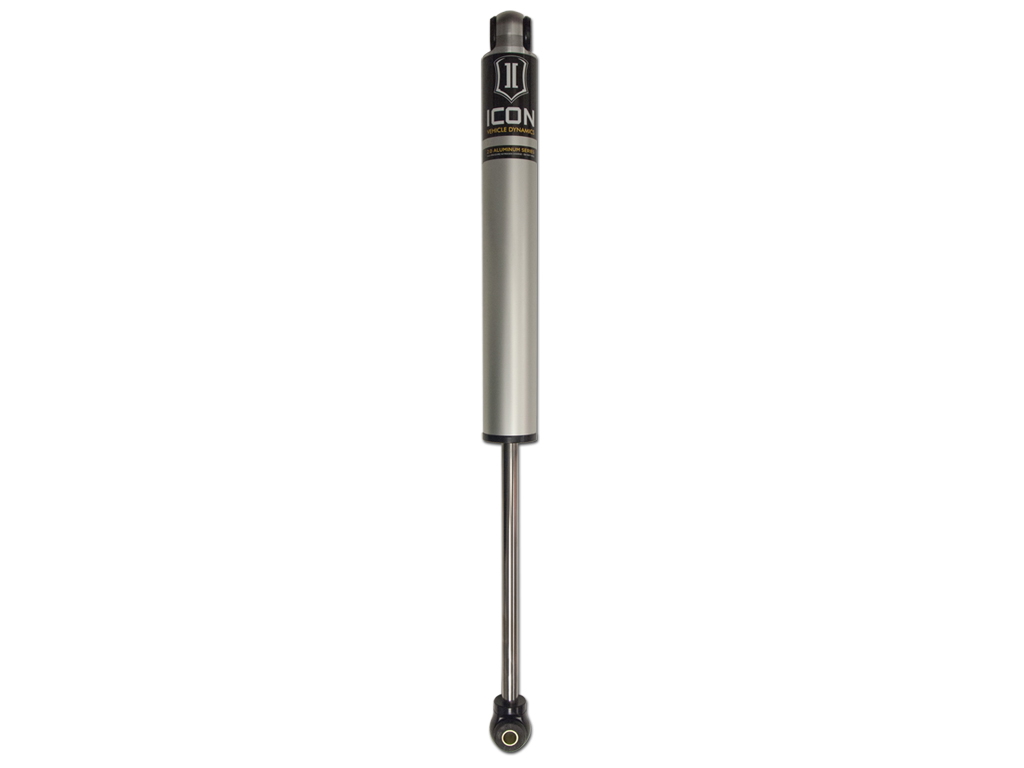

ICON VEHICLE DYNAMICS 99-16 FSD 4WD 3-6" REAR 2.0 VS IR

ICON 1999-2016 Ford Super Duty 4WD, 3-6” Lift, Rear 2.0 VS Shock

Product Details

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Nitrogen charged monotube design with internal reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable
100% revalveable

Technical Notes

TECH NOTE: Compatible with 3-6" of rear lift over stock
TECH NOTE: 2000-2005 Ford Excursions also require shock bar pin part number 196001
TECH NOTE: Not compatible with F-350/F-450 Cab & Chassis models

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Compatible with 3-6" of rear lift over stock TECH NOTE: 2000-2005 Ford Excursions also require shock bar pin part number 196001 TECH NOTE: Not compatible with F-350/F-450 Cab & Chassis models
UPC	00840103402321
Bushing Material	Polyurethane
Bushing Color	Black
Material	Aluminum
Finish	Anodized
Body Diameter	2
Remote Reservoir	NO
Color	Gray
Adjustable Damping	No
Shaft Diameter	0.625
Cylinder Color	Gray
Shaft Material	Chrome
Cylinder Material	Aluminum
External Reservoir	No
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Width	3.00 in
Length	40.00 in
Depth	3.00 in
Weight	4.0000 lb
