4102

Van Compass Engine Skid Plate, Sprinter 2500/3500 AWD (2023-Up) with Van Compass 2" Lift

Product Details

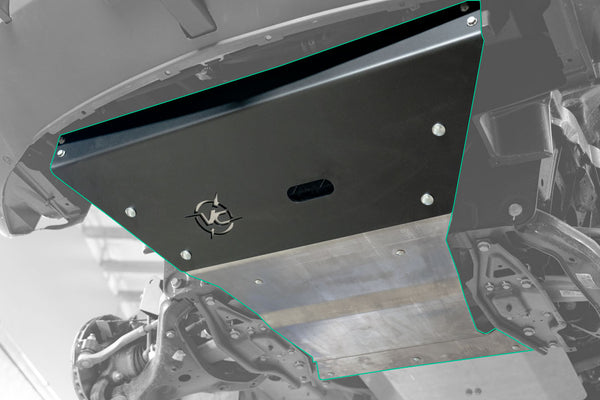

Explore with confidence in your AWD Sprinter with the Van Compass Engine skid plate. Designed to create a strong, smooth surface to slide over or bash into. The skid plate protects your vital drivetrain components when off-road situations get a little out of hand. Made of 1/4" thick 5052 Aluminum and 3/16" high strength steel. The skid system is 100% bolt on with all the hardware provided. Engine oil changes can be performed without removal of skid system. For additional protection add the transmission/transfer case skid plate and fuel tank skid plate!With the release of the AWD Sprinter chassis in 2023, Mercedes changed the front subframe of the Sprinter and adapted a new powertrain to fit. This skid part number is specifically fit to the 2023+ AWD models with 4-cyl diesel and 9-speed auto transmission.

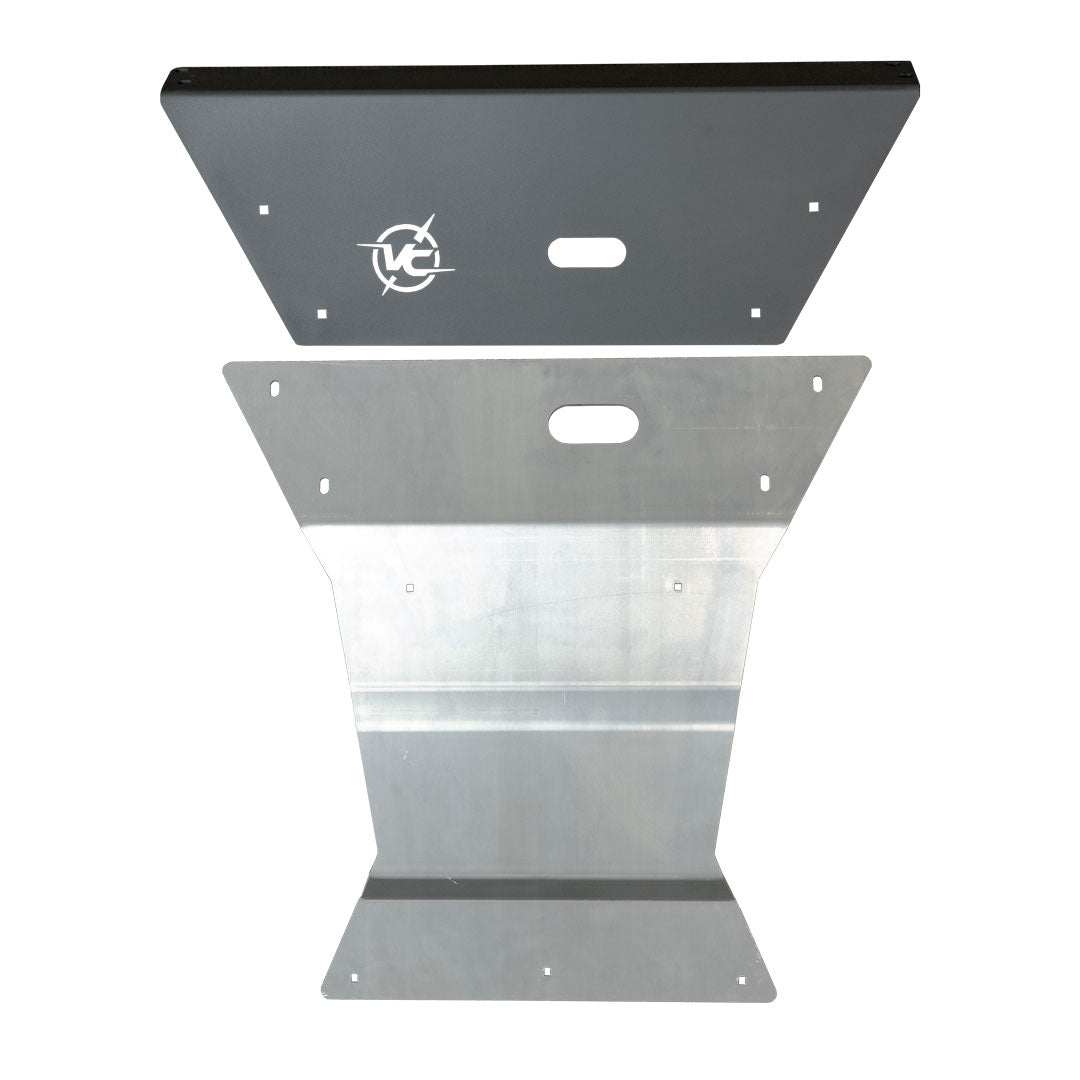

3/16" Steel Front Bash Plate, Black Powder Coat finish for corrosion protection
Engine Skid Plate - 1/4" 6061 T-6 Aluminum
All necessary hardware included
Total installed weight 55lbs

Technical Notes

NOTE: Requires Van Compass 2" lift.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Van Compass
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Technical Notes	NOTE: Requires Van Compass 2" lift.
UPC	810185260225
Width	21.00 in
Length	41.00 in
Depth	5.00 in
Weight	70.0000 lb
