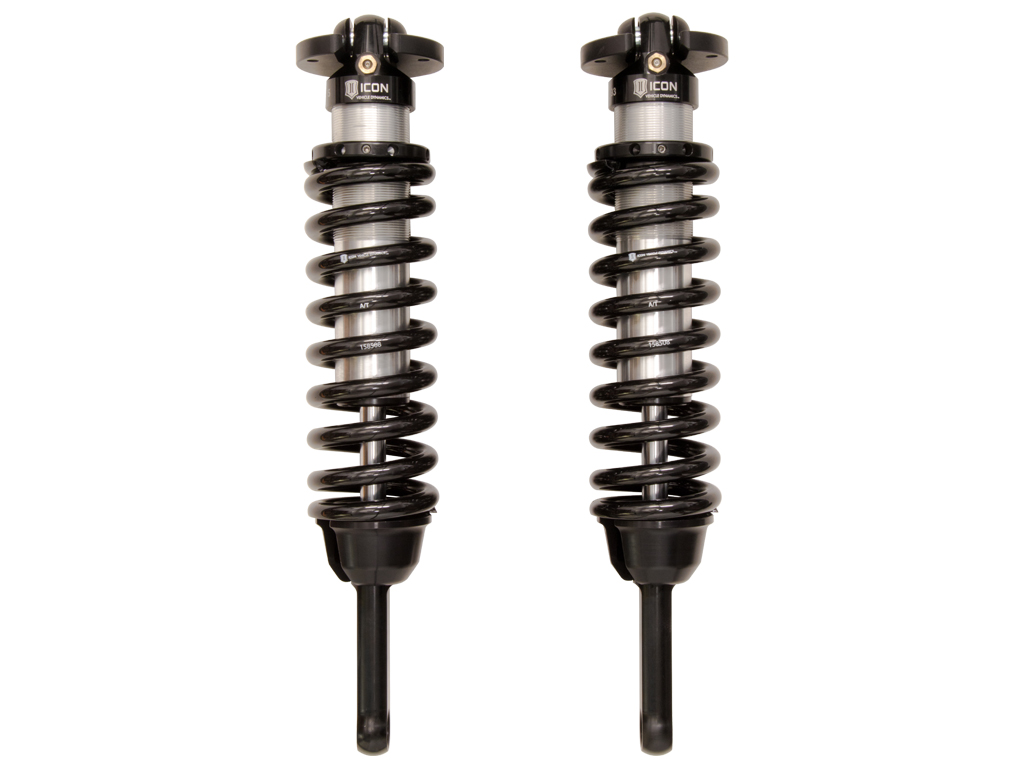

ICON VEHICLE DYNAMICS 05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB

Product Details

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Bolt-in design makes for an easy install into OEM shock location
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Extended Travel length requires installation of aftermarket front upper control arms
  • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
  • TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
  • TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
  • TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
  • TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
  • APPLICATION NOTE #110: Trimming Required For Recommended Tire Size

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
  • TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
  • TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
  • TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
  • TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
  • APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
UPC 00840103403939
Maximum Lift 3.5
Material Aluminum
Spring Rate 700
Body Diameter 2.5
Remote Reservoir NO
Adjustable Height yes
Spring Rate Type Linear
Spring Color Black
Adjustable Damping NO
Shaft Diameter 0.875
Service Parts 611019 - COILOVER HARDWARE KIT PAIR
Add-On Part 51045 - TOYOTA .25” BUMP STOP SPACER KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Width 13.00 in
Length 26.00 in
Depth 7.00 in
Weight 47.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Coilover Kit, Internal Reservoir, 700 lbs/in Coils

58635-700

8 in stock

$1,742.95 $1,568.66
