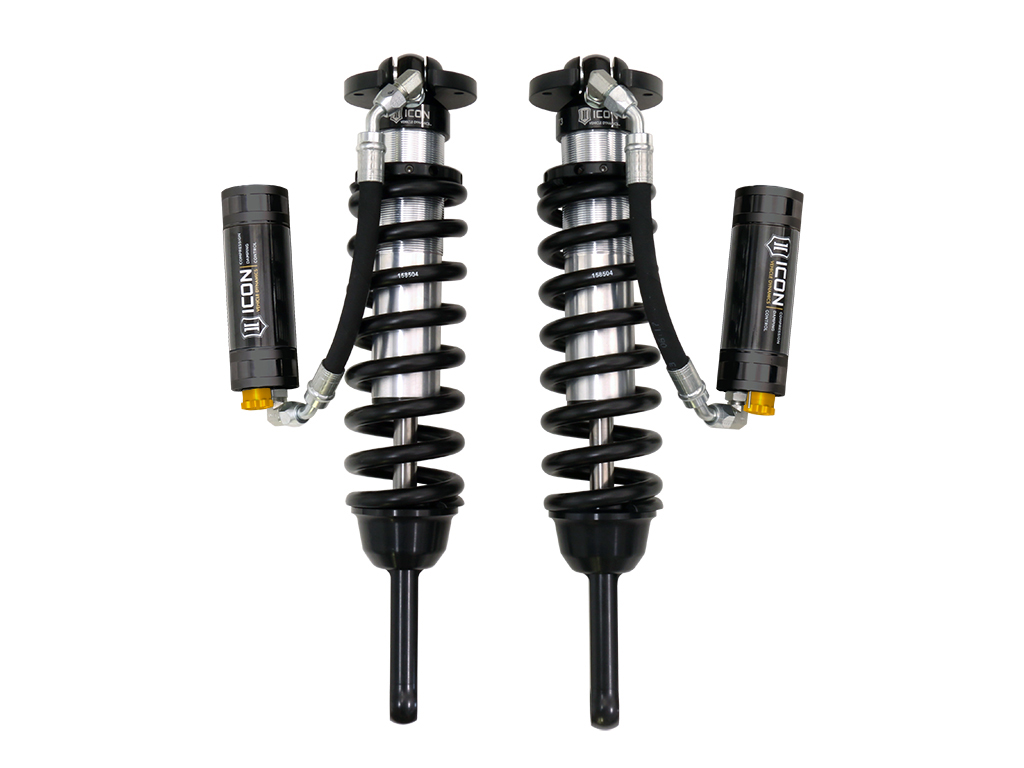

ICON VEHICLE DYNAMICS 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT

Product Details

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Hose Length Optimized for Increased Fluid Transfer
  • External Reservoirs Ensures Maximum Cooling
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • ICON engineered coil springs
  • Vehicle specific tuned for superior shock damping and control
  • Extended Travel length requires installation of aftermarket front upper control arms
  • Kit Includes Sway bar relocation brackets
  • Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
  • CAD-plated threaded body
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearings
  • Completely re-buildable

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
  • APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
  • TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
  • TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
  • TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
  • APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
  • TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
  • TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
  • TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
UPC 00840103404301
Maximum Lift 3.5
Material Aluminum
Spring Rate 650
Body Diameter 2.5
Remote Reservoir Yes
Adjustable Height yes
Spring Rate Type Linear
Spring Color Black
Adjustable Damping Yes
Shaft Diameter 0.875
Damping Adjustment Type Manual
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Width 12.00 in
Length 27.00 in
Depth 8.00 in
Weight 50.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2005-2023 Toyota Tacoma, 2.5 VS Extended Travel, Remote Reservoir w/ CDCV Coilover Kit

58735C

3 in stock

$2,309.95 $2,078.96
