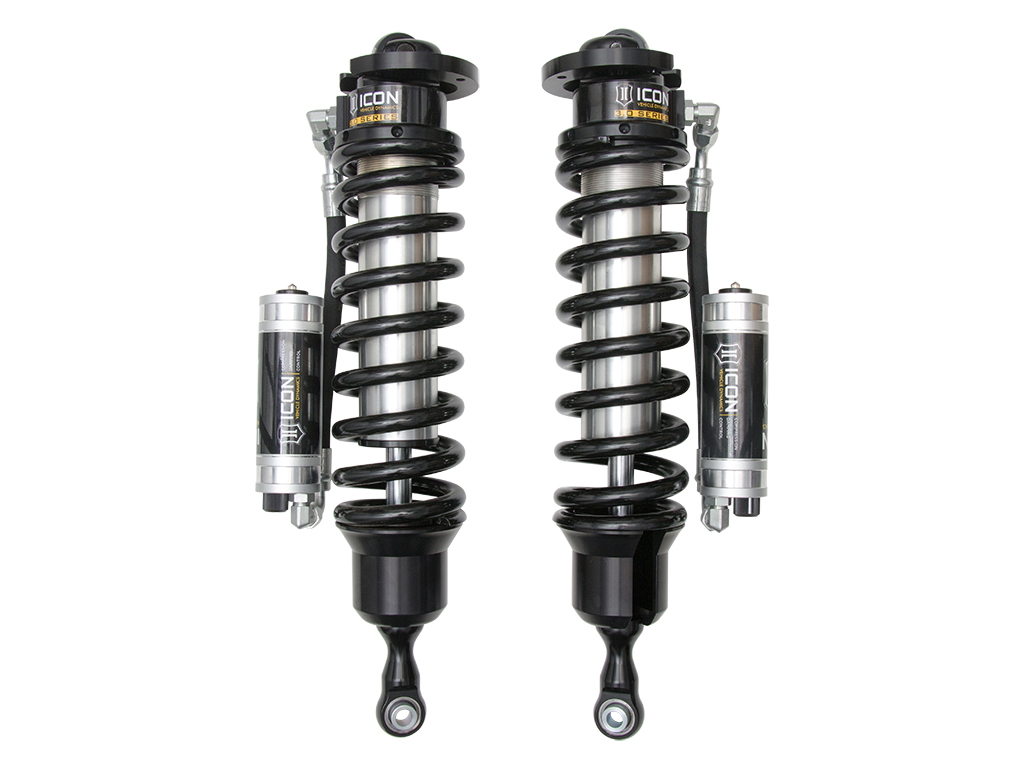

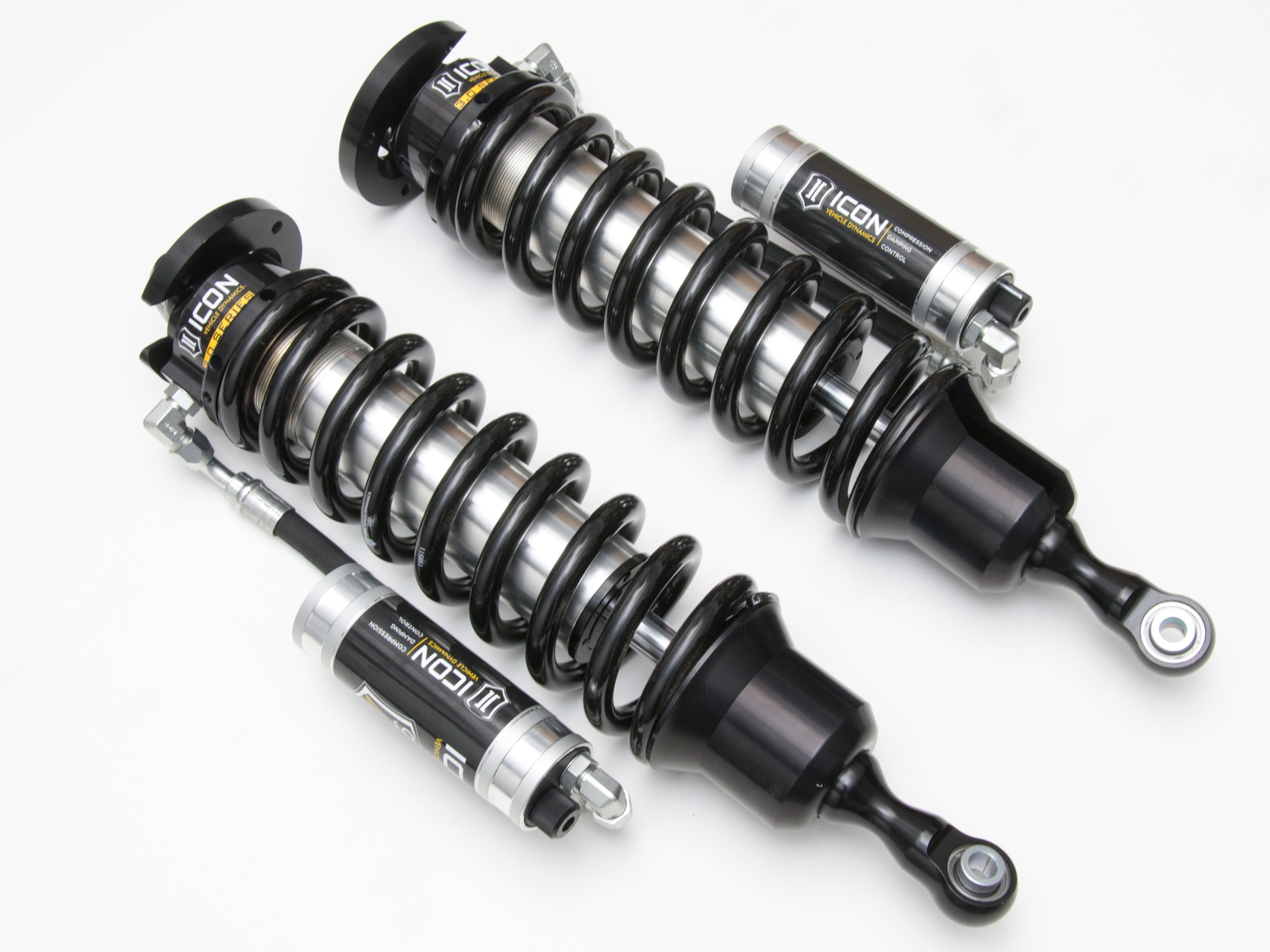

ICON VEHICLE DYNAMICS 08-UP LC 200 3.0 VS RR CDCV CO KIT

Product Details

While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few Land Cruiser owners seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2008-UP Land Cruiser 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 2.25-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.

  • Significant increase in damping ability for excellent performance in extreme off-road conditions
  • Heavy duty 1” CNC machined shock shafts

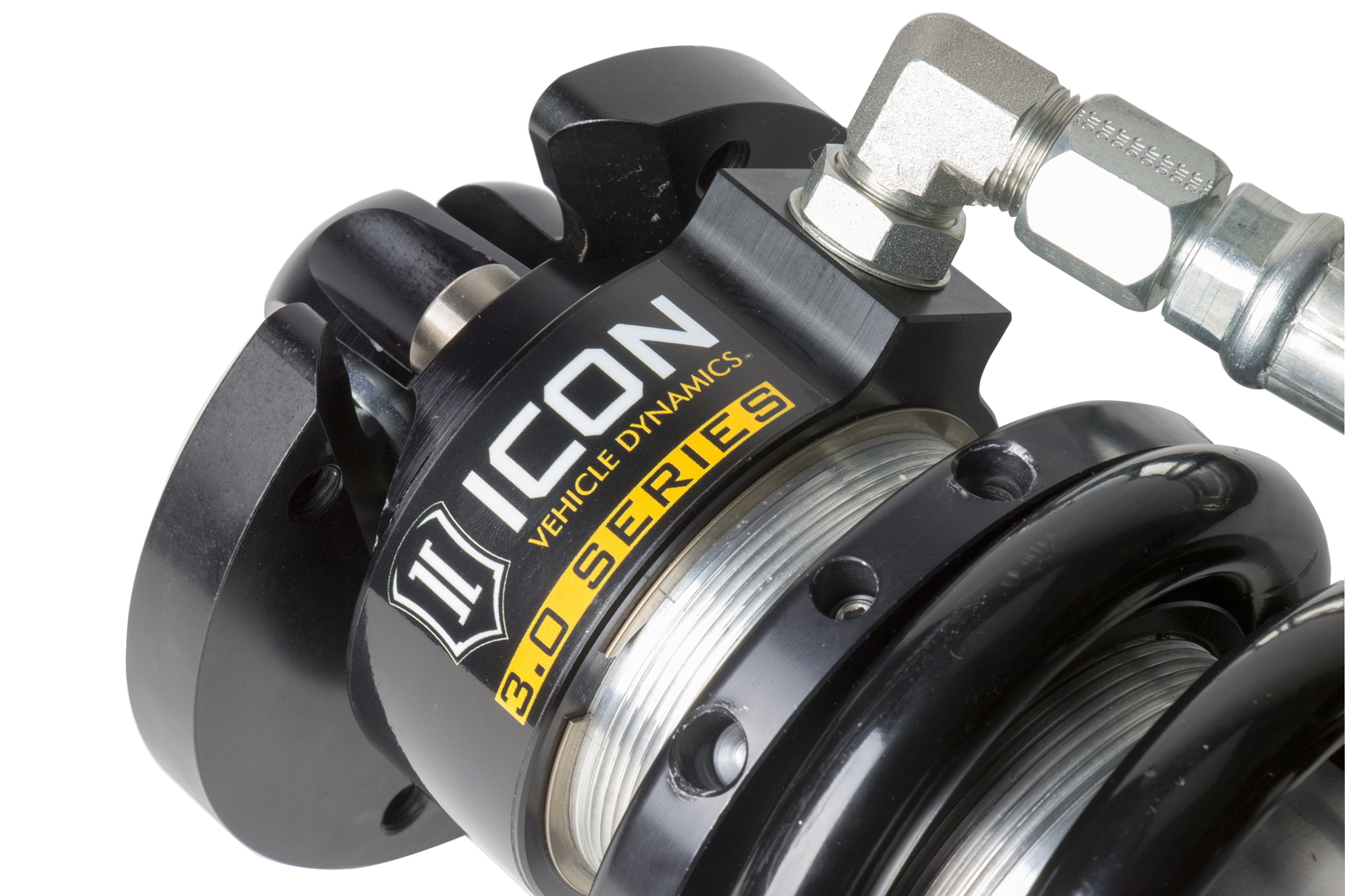

  • Multi stage CAD plated shock body with hard anodized piston and top cap
  • Fully serviceable
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
  • Adjustable coilovers provide 2.25-3.5” of front lift height
  • Direct bolt-in to OEM shock location makes for an easy install

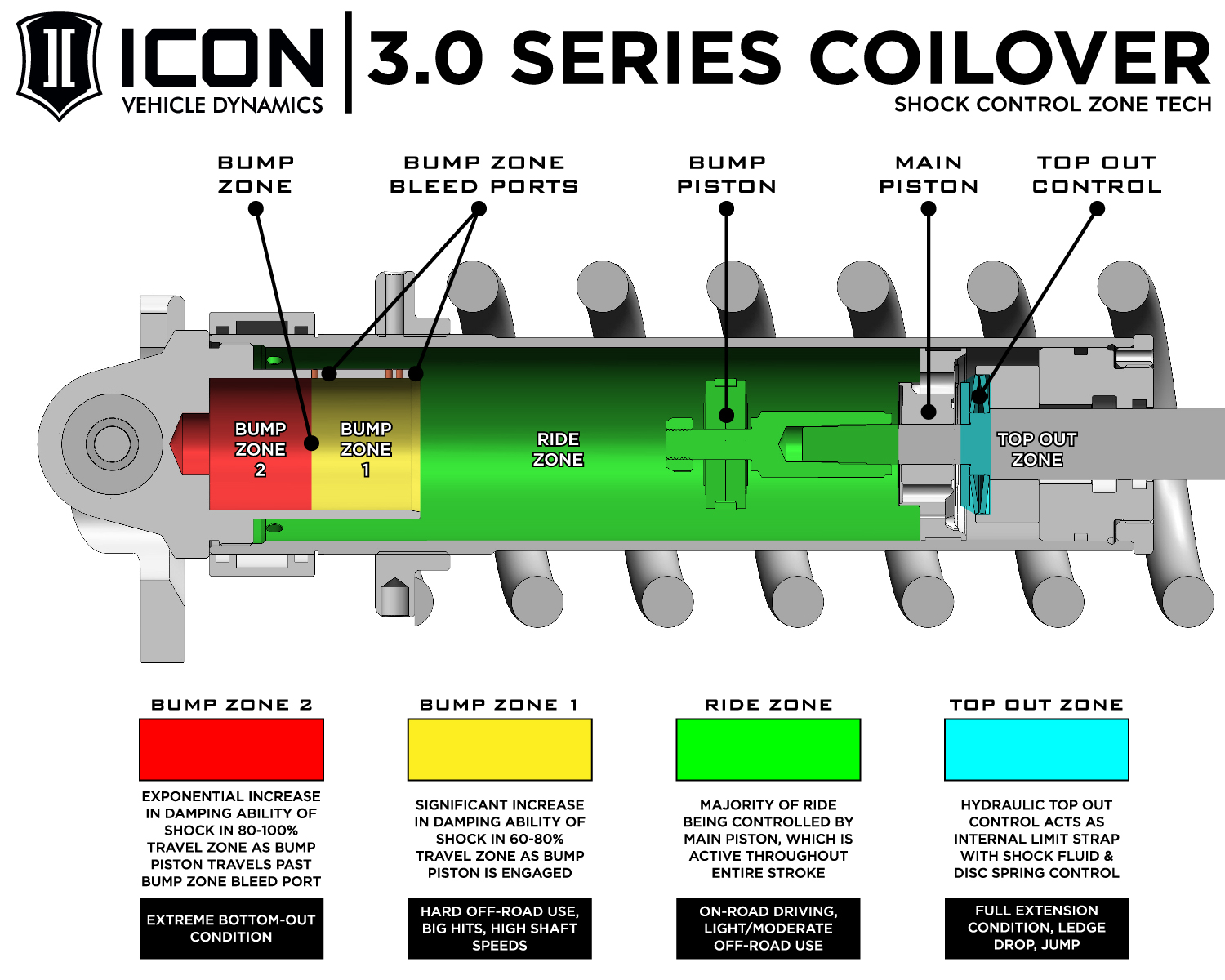

  • ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
  • Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
  • 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
  • High quality ICON-engineered Eibach springs offer increased travel and performance
  • PTFE lined COM12 spherical bearings ensure maximum strength and durability

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 8-8.5" Wide, 5.75" Backspace
  • Recommended Aftermarket Tires: 34 x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 8-8.5" Wide, 5.75" Backspace
  • Recommended Aftermarket Tires: 34 x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
UPC 00840103404585
Adjustable Yes
Material Steel
Body Diameter 3
Remote Reservoir Yes
Adjustable Height Yes
Spring Color Black
Adjustable Damping Yes
Shaft Diameter 1
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 34" x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Width 15.00 in
Length 33.00 in
Depth 10.00 in
Weight 70.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2008-Up Toyota Land Cruiser, 3.0 VS RR/CDCV Coilover Kit

58765

2 in stock

$3,828.46 $3,445.61
