ICON VEHICLE DYNAMICS 09-14 F150 6" REAR 2.5 VS PB CDCV UPKG PAIR

Product Details

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • 100% Rebuildable
  • 100% Revalveable
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
UPC 00840103407340
Adjustable Yes
Shaft Diameter 0.875
Cylinder Color Silver
Shaft Material Chrome
Cylinder Material Steel
External Reservoir Yes
Tube Outside Diameter 2.5
Service Parts 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Width 10.00 in
Length 39.00 in
Depth 9.00 in
Weight 28.0000 lb
Brand: ICON Vehicle Dynamics

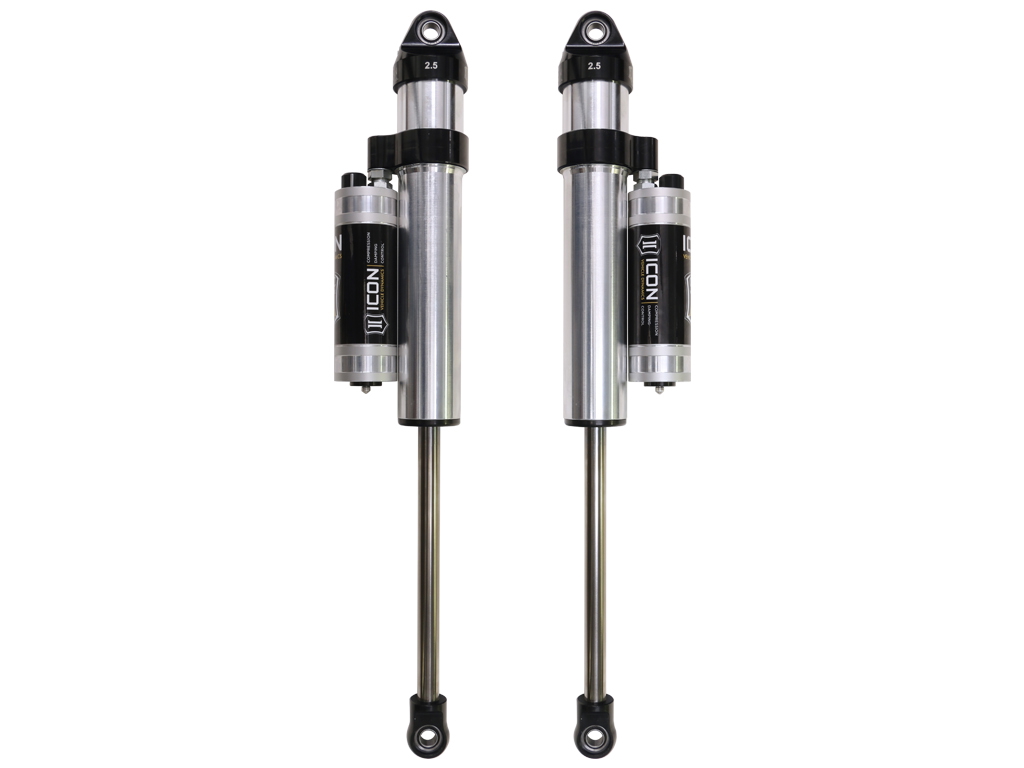

ICON 2009-14 Ford F150, 6” Lift, Rear 2.5 VS Shocks, PB CDCV UPKG, Pair

97702CP-CB

6 in stock

$1,574.95 $1,417.46
