CS-DFSP-94

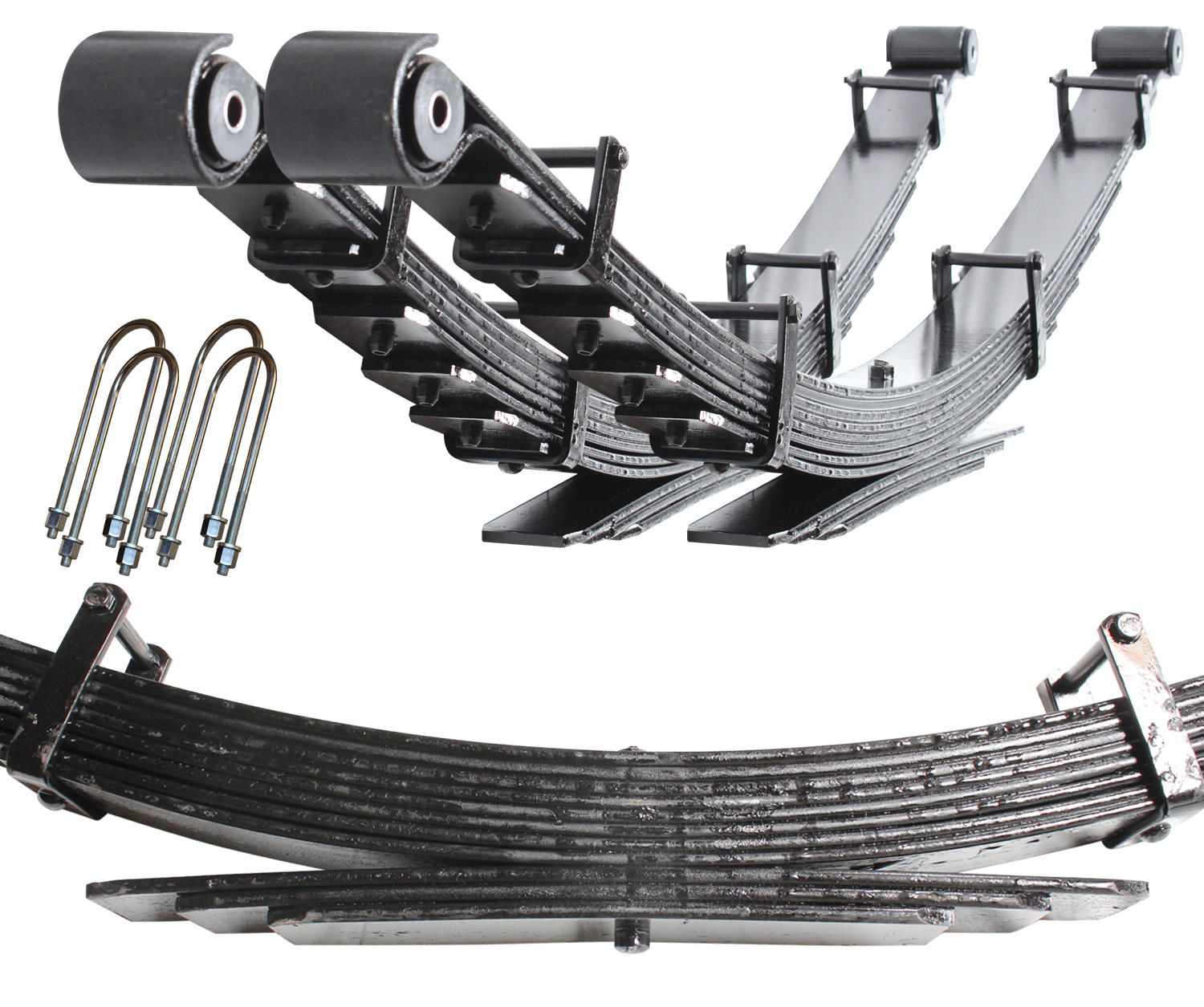

Carli Rear Progressive Leaf Spring Kit, 1994-02 Ram 2500/3500, Diesel, 1” Lift

Product Details

These full-length progressive-rate spring packs, custom-built by Deaver Spring exclusively for Carli Suspension, are engineered with a two-stage design, aiming to maintain a commendable cargo weight capacity while providing a comfortable driving experience on all terrains. The progressive design of these leaf springs ensures that they offer balanced performance for on-road, off-road, and towing situations.

Fits 1994-02 Dodge Ram 2500/3500, diesel, 4x4
Maintains slight rear-high stance with Carli 3-inch lift systems
Softens initial spring rate at ride height
Eliminates factory block; minimizes axle wrap/wheel hop
Delivers “Light” 3/4-ton cargo/tow capacity
Capable of 15 inches of suspension travel with factory shackle

Technical Notes

REQUIRES BUT DOES NOT INCLUDE – 5-inch Bump Stop Drop Bracket (Or Timbren PN: DR1525H4)
The 1994-2002 Ram 2500/3500 trucks are known for having a driver's side lean of up to 1.5 inches, where the driver's side sits lower than the passenger's side. To address this common issue, Carli Suspension offers side-specific Coil Springs and Leaf Springs for these trucks. However, due to the unique nature of these trucks and the lack of standardized design practices during their manufacturing, achieving a perfectly level stance can be challenging. Carli Suspension has encountered cases where trucks required the taller spring to be installed on the passenger's side to achieve a level stance. Conversely, there have been instances where the same height springs needed to be installed on both sides for a leveled stance. These inconsistencies in truck design make it difficult to guarantee a completely level side-to-side stance, and the corrective action taken by Carli Suspension is not considered a warranty. Due to the limited options for performance upgrades for second-generation trucks, Carli Suspension has made the conscious decision to keep the product line available for these trucks despite the design oddities. The company has chosen to inform customers about these challenges rather than discontinuing the product line altogether. By understanding the potential side-to-side leveling concerns, customers can make informed decisions and explore solutions such as spring spacers to achieve the desired stance.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	REQUIRES BUT DOES NOT INCLUDE – 5-inch Bump Stop Drop Bracket (Or Timbren PN: DR1525H4) The 1994-2002 Ram 2500/3500 trucks are known for having a driver's side lean of up to 1.5 inches, where the driver's side sits lower than the passenger's side. To address this common issue, Carli Suspension offers side-specific Coil Springs and Leaf Springs for these trucks. However, due to the unique nature of these trucks and the lack of standardized design practices during their manufacturing, achieving a perfectly level stance can be challenging. Carli Suspension has encountered cases where trucks required the taller spring to be installed on the passenger's side to achieve a level stance. Conversely, there have been instances where the same height springs needed to be installed on both sides for a leveled stance. These inconsistencies in truck design make it difficult to guarantee a completely level side-to-side stance, and the corrective action taken by Carli Suspension is not considered a warranty. Due to the limited options for performance upgrades for second-generation trucks, Carli Suspension has made the conscious decision to keep the product line available for these trucks despite the design oddities. The company has chosen to inform customers about these challenges rather than discontinuing the product line altogether. By understanding the potential side-to-side leveling concerns, customers can make informed decisions and explore solutions such as spring spacers to achieve the desired stance.
UPC	883584151081
ProxyNumber	15108
Width	41.00 in
Length	66.00 in
Depth	10.00 in
Weight	245.0000 lb
