CS-DUC35-03-D

Product Details

The Unchanied Kit pulls out all the stops. This system provides uncompromised offroad ability with a civil on-road ride resulting in a truck that’s a blast to drive in all environments.

  • Featuring HUGE remote reservoir 3.5" front shocks and 3.0 4-tube bypass rear shocks, this system is ready to soak up high speed hits
  • The Fabricated long arm system included in this kit is capable of 14+ inches of travel and are 50% longer than factory cotrol armsand feature fully serviceable joints resulting in zero-bind articulation

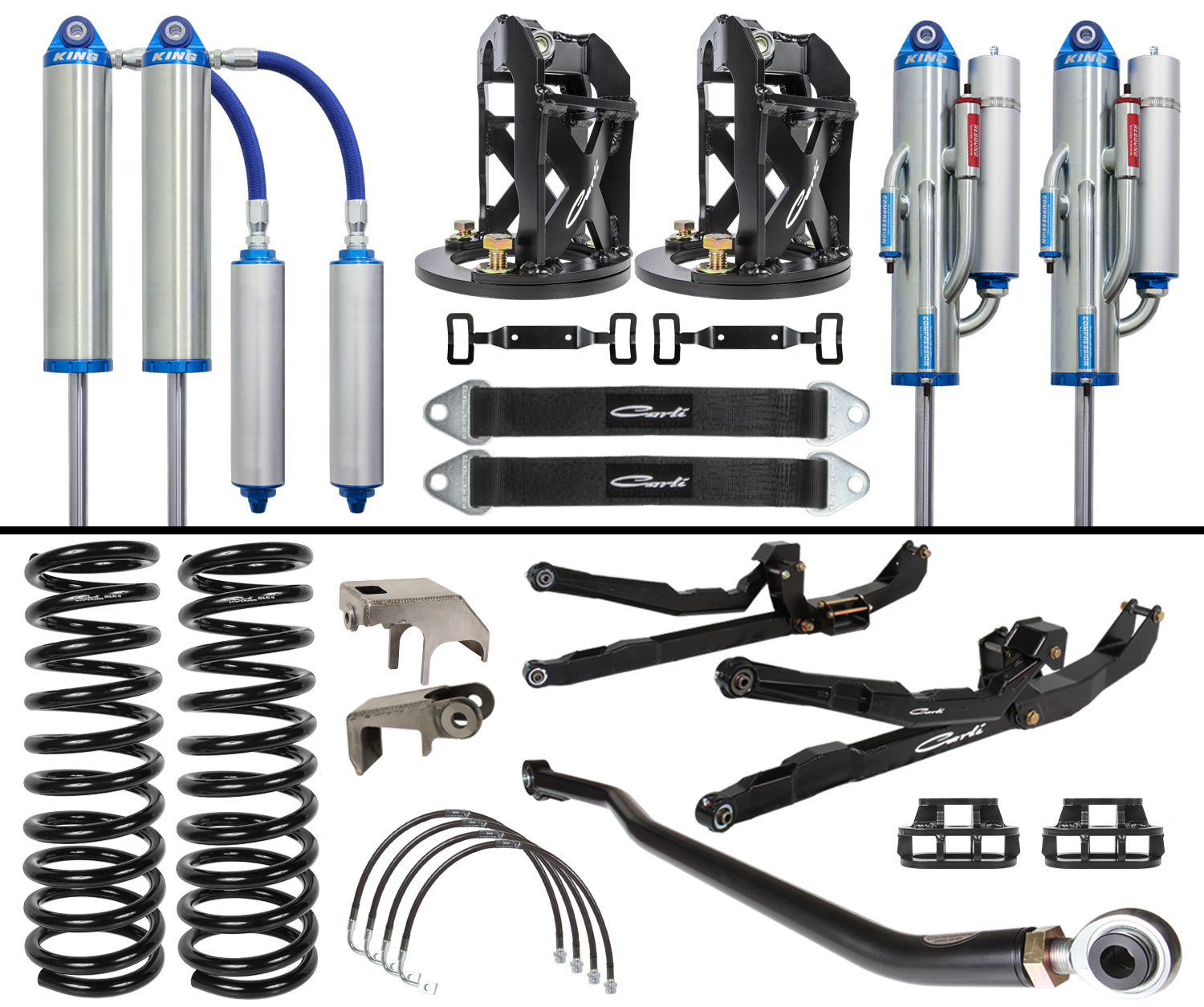

  • System includes linear-rate coil springs, front and rear shock package, fabricated shock towers, fabricated long arm system, rear shock mounts, brake line kit, front bump brops and adjustable track bar.
  • This system requires Torsion Sway Bar and Full Progressive Leaf Springs to properly function.
  • Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.

Technical Notes

  • Optional Parts to support this system:
  • Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
  • Carrier Bearing Drop: CS-CARRIERDROP-D
  • Axle Truss: CS-AAMTRUSS
  • Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
  • Pittman Arm: FTS-93012,
  • Leaf Spring Options: CS-DFSP-6-10-D
  • Rear Shock Mount - Driver: CS-DRSMD
  • Rear Shock Mount - Passenger: CS-DRSMP
  • Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
  • Airbag Spacer: CS-AIRBAGSPCR
  • Hydro Bump Kit - Front: CS-DHYDRO-F-6

Warranty Information

Warranty information unavailable

Specification

Brand Carli Suspension
Prop65 Warning WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes
  • Optional Parts to support this system:
  • Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
  • Carrier Bearing Drop: CS-CARRIERDROP-D
  • Axle Truss: CS-AAMTRUSS
  • Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
  • Pittman Arm: FTS-93012,
  • Leaf Spring Options: CS-DFSP-6-10-D
  • Rear Shock Mount - Driver: CS-DRSMD
  • Rear Shock Mount - Passenger: CS-DRSMP
  • Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
  • Airbag Spacer: CS-AIRBAGSPCR
  • Hydro Bump Kit - Front: CS-DHYDRO-F-6
UPC 883584148678
ProxyNumber 14867
Width 13.00 in
Length 12.00 in
Depth 37.00 in
Weight 450.0000 lb
Brand: Carli Suspension

Carli Unchained 3.5 System, Base, 3” Lift, 03-09 Ram 2500/3500, Diesel, Long Arm

CS-DUC35-03-D

0 in stock, backorders available

$13,390.00
