CS-F45-COM-CS-08

Carli Commuter 2.0 System, Base, 4.5/5.5" Lift, 2008-10 Ford F250/F350, Diesel

Product Details

The Commuter 2.0 system is designed for the customer seeking the best on-road ride quality on a budget. Improve the ride of your daily driver with this entry level system built for comfort while keeping your wallet in mind.

Experience improved handling and stability with the Carli Commuter Suspension System featuring Carli-Tuned corrosion resistant 2.0 IFP shocks.

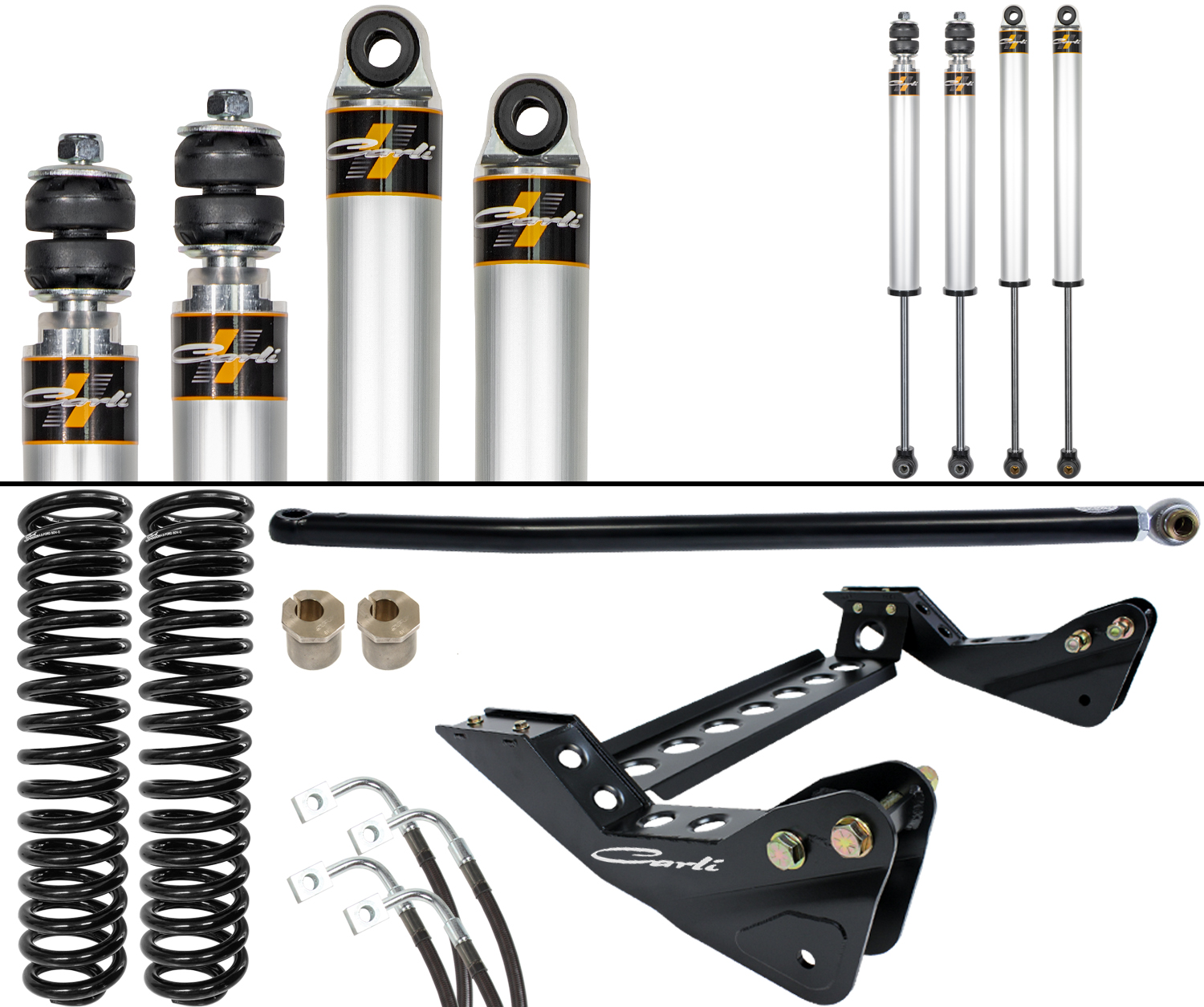

System includes front and rear shock package, brake line kit, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
Increases wheel travel to 11.0" front and 13.8" rear.
Requires but does not include rear leaf spring option and sway bar option.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FEL-08
Radius Arms: CS-FARA-45-05
Leaf Spring Options (REQUIRED): CS-FFSP-08 or CS-FPAP-08
Long Travel Bags: CS-FLTB-08
Steering Stabilizer - High mount: CS-FHMSS-08
Steering Stabilizer - Low mount: CS-FLMSS-05
Carrier Bearing Drop: CS-CARRIERDROP-F

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-FEL-08 Radius Arms: CS-FARA-45-05 Leaf Spring Options (REQUIRED): CS-FFSP-08 or CS-FPAP-08 Long Travel Bags: CS-FLTB-08 Steering Stabilizer - High mount: CS-FHMSS-08 Steering Stabilizer - Low mount: CS-FLMSS-05 Carrier Bearing Drop: CS-CARRIERDROP-F
UPC	883584149194
ProxyNumber	14919
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	195.0000 lb
