CS-F55-BC-CS-23

Product Details

The Backcountry System is made for those seeking the best ride on and off-road without breaking the bank; You’re no longer limited to the highway while gravel roads become dull as you can drive them at speed with one hand on the wheel.

  • Features Carli-Tuned remote reservoir 2.0 shocks which provide a more comfortable on-road feel and better offr-road performance. Corrosion resistant aluminum bodies provide long-lasting finish.

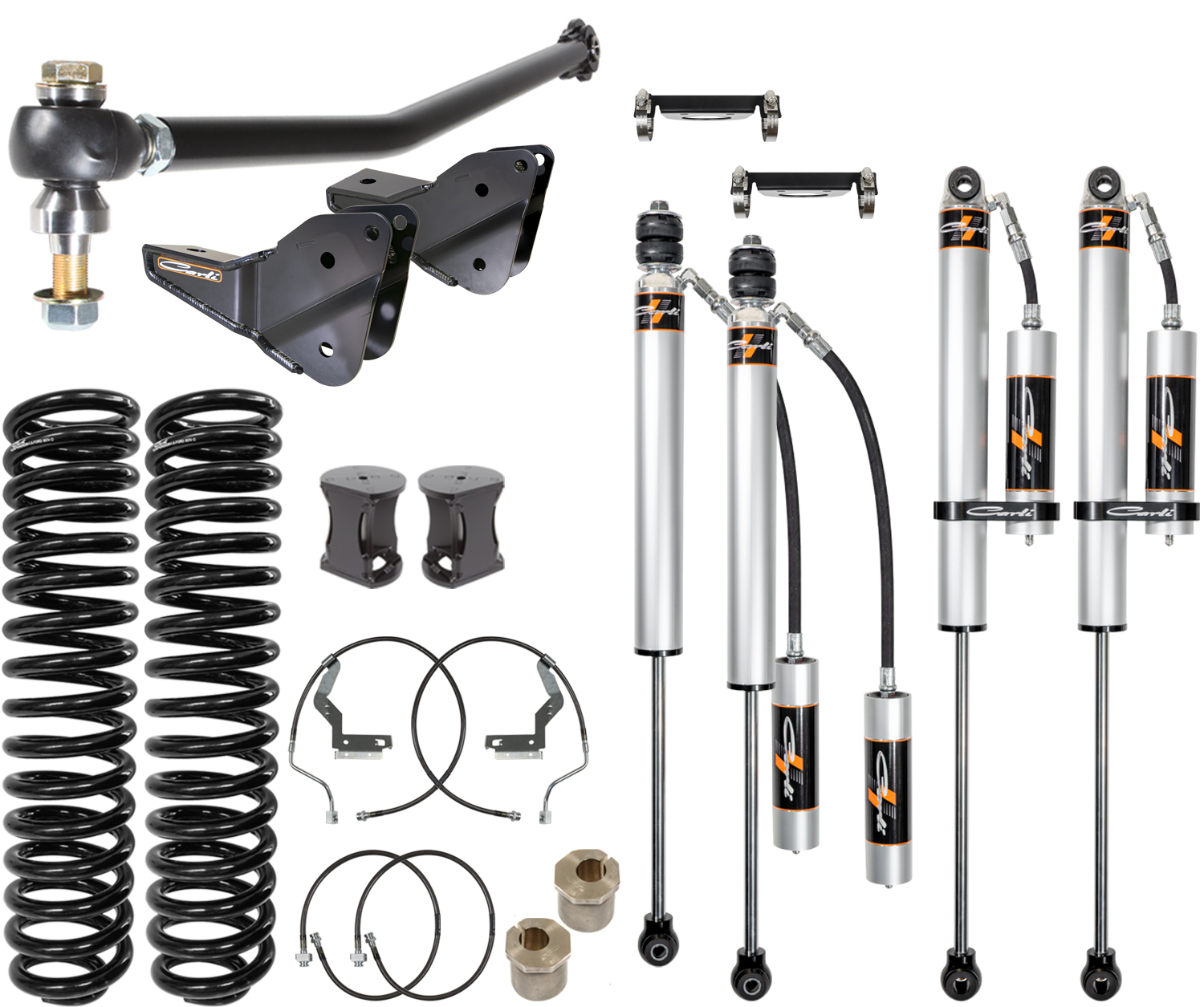

  • System includes front and rear shock package, brake line kit, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
  • Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
  • Increases wheel travel to 11.3" front and 13.8" rear.

Technical Notes

  • Required and Optional Parts to support this system:
  • 2 deg Pinion Shim: CS-FPSKIT-3X2
  • Trophy Hitch: CS-FHITCH-1723
  • Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
  • Radius Arms: CS-FARA-55-23
  • Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Long Travel Bags: CS-FLTB-23-35 or CS-FLTB-23-40 or CS-FLTB-23-45
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-23
  • Carrier Bearing Drop: CS-CARRIERDROP-F

Warranty Information

Warranty information unavailable

Specification

Brand Carli Suspension
Technical Notes
  • Required and Optional Parts to support this system:
  • 2 deg Pinion Shim: CS-FPSKIT-3X2
  • Trophy Hitch: CS-FHITCH-1723
  • Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
  • Radius Arms: CS-FARA-55-23
  • Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Long Travel Bags: CS-FLTB-23-35 or CS-FLTB-23-40 or CS-FLTB-23-45
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-23
  • Carrier Bearing Drop: CS-CARRIERDROP-F
UPC 883584154723
ProxyNumber 15472
Width 13.00 in
Length 12.00 in
Depth 37.00 in
Weight 193.0000 lb
Brand: Carli Suspension

CARLI 23+ FORD F250/350 4X4 DIESEL 5.5" BACKCOUNTRY SYSTEM

CS-F55-BC-CS-23

7 in stock

$3,645.00
