CS-FLVL-SIG-17-GAS

Carli Signature Leveling System, Base, 2.5” Lift, 2017-22 Ford F250/F350, Gas

Product Details

The Carli Signature Leveling System is the entry level kit designed for the customer who wants to improve their ride and have the option to upgrade over time.

Carli Signature Series Shocks are Carli tuned and corrosion resistant to provide a durable and comfortable ride.

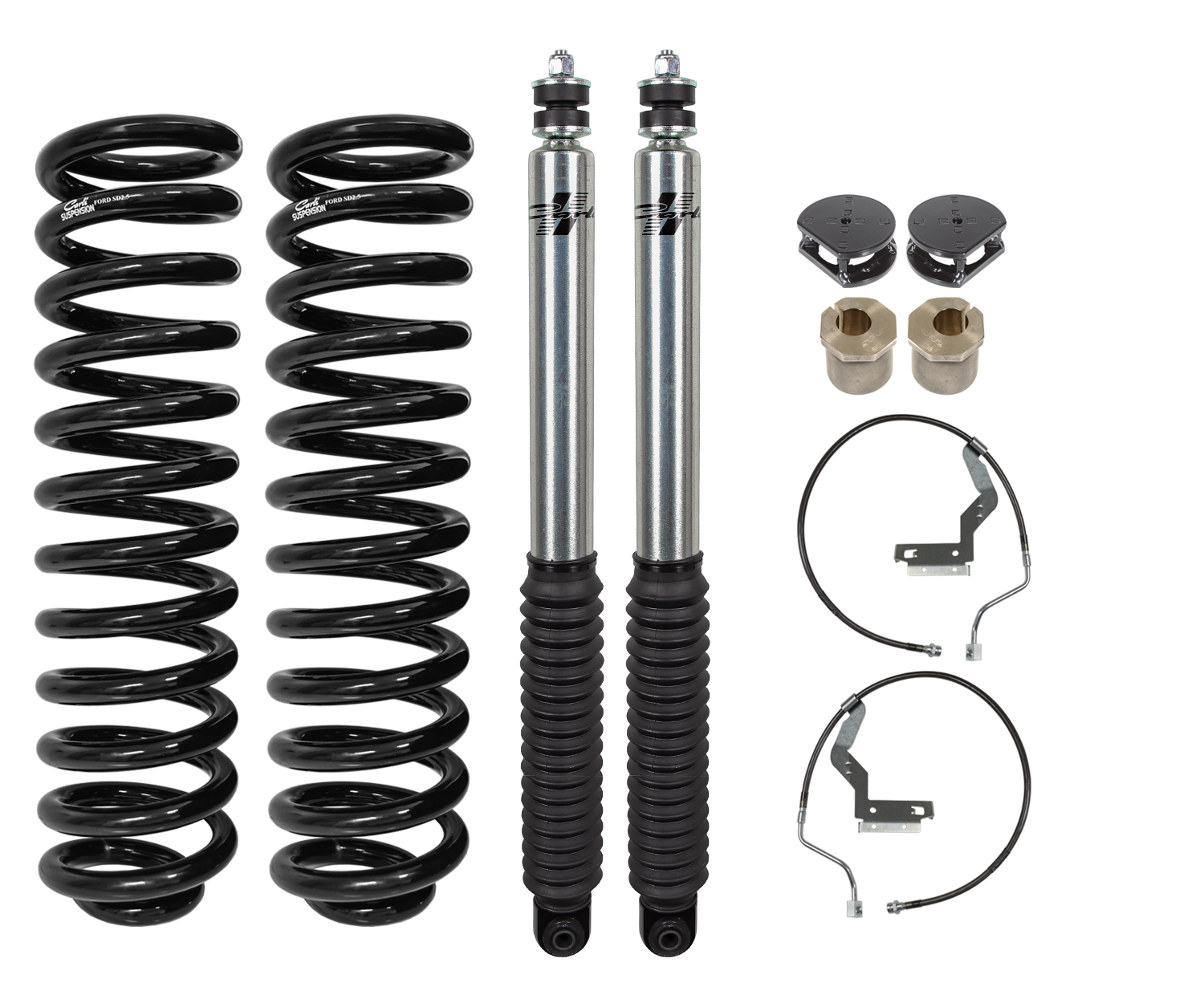

System includes front and rear shock package, linear rate coil springs, brake line kit, bump drops, caster correction shims and adjustable track bar.
Carli Signature Series shocks carry a limited lifetime warranty so you can upgrade without worry.
Increases wheel travel to 9" front and 13" rear.
Requires but does not include sway bar option.
Only compatible with trucks equipped with GAS engines.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
Radius Arms: CS-FARA-LVL-05
Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD or CS-FFSP-LVL-17-XHD or CS-FFSP-LVL-17-XXHD
Leaf Spring Shackle: CS-FSHACKLE-11
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-05
Trophy Hitch: CS-FHITCH-1723

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17 Radius Arms: CS-FARA-LVL-05 Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD or CS-FFSP-LVL-17-XHD or CS-FFSP-LVL-17-XXHD Leaf Spring Shackle: CS-FSHACKLE-11 Steering Stabilizer - High mount: CS-FHMSS-17 Steering Stabilizer - Low mount: CS-FLMSS-05 Trophy Hitch: CS-FHITCH-1723
UPC	883584136033
ProxyNumber	13603
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	102.0000 lb
