ICON VEHICLE DYNAMICS 20-UP GLADIATOR 2.5" STAGE 4 SUSPENSION SYSTEM

Product Details

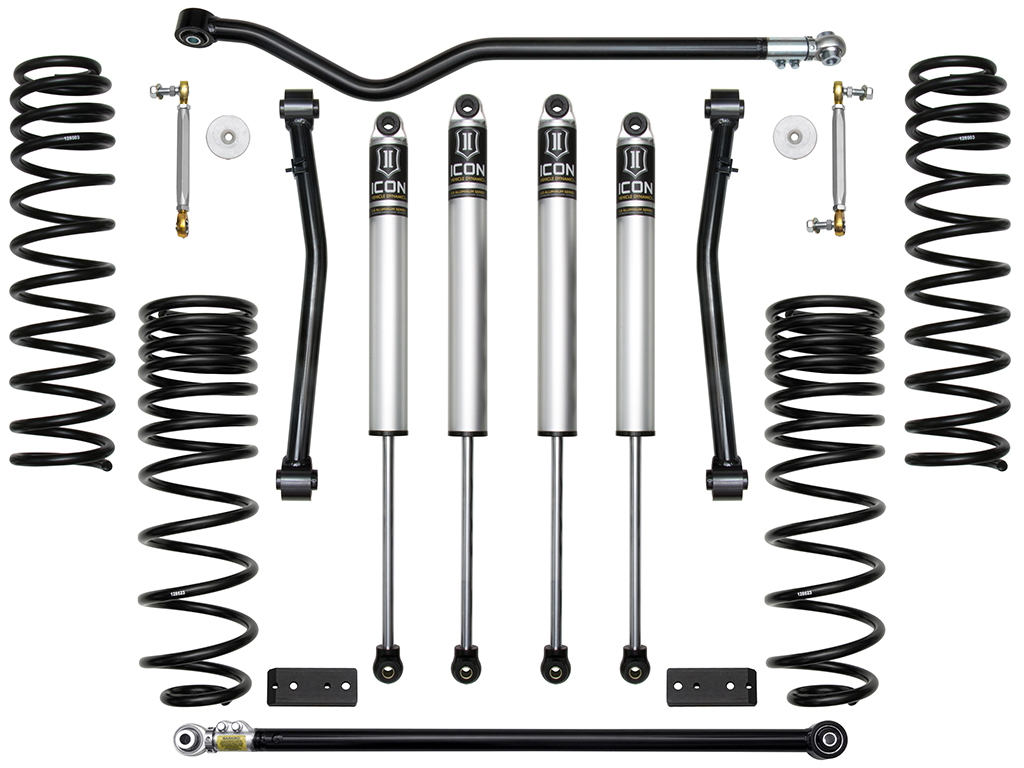

The Stage 4 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving on-road ride quality and overall performance for the daily driven application that will see frequent, moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

  • 2.5" lift height
  • Adjustable, billet aluminum front sway bar links
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Fits 35" tires (37" with extended bump stop spacer kit)
  • 33% front, 23% rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Front lower links included for caster angle correction and improved front end articulation
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
  • 2.0 Aluminum Series shocks with vehicle specific valving
  • Front and rear track bars ensure proper alignment and improved articulation

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
  • APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
  • APPLICATION NOTE #150: Shocks Are Fully Serviceable
  • TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
  • Ships In Multiple Boxes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
  • APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
  • APPLICATION NOTE #150: Shocks Are Fully Serviceable
  • TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
  • Ships In Multiple Boxes
UPC 00840103415888
Maximum Lift 2.5
Spring Color Black
Bushings Included Yes
Add-On Part 22071 - 20-UP JT EXTENDED BUMP STOP SPACER KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
Recommended Aftermarket Wheels ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
Width 13.00 in
Length 21.00 in
Depth 7.00 in
Weight 119.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 4 Suspension System

K22104

1 in stock, backorders available

$2,644.37
