ICON 2000-06 Toyota Tundra, 0-2.5" Lift, Stage 3 Suspension System

Product Details

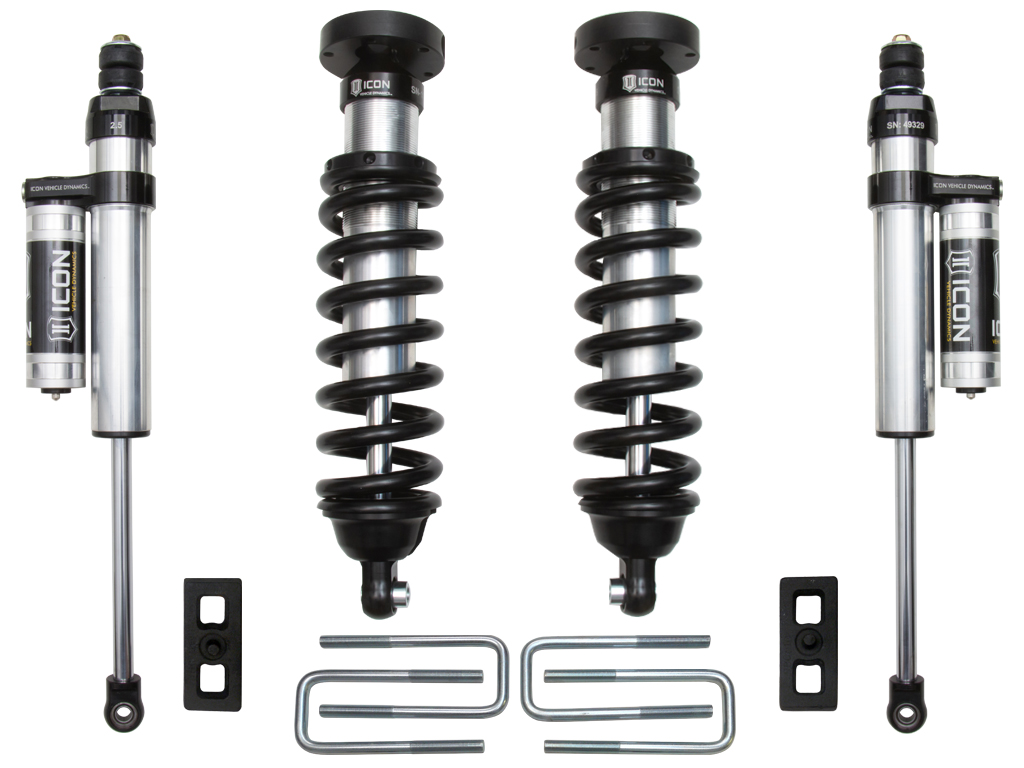

ICON Vehicle Dynamics Toyota Tundra Stage 3 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-2.5” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2000 - 2006 Toyota Tundra Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers from 0-2.5" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in multiple boxes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in multiple boxes
UPC 00840103416786
Maximum Lift 2.5
Spring Rate 650
Spring Color Black
Bushings Included Yes
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Width 13.00 in
Length 26.00 in
Depth 7.00 in
Weight 74.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2000-06 Toyota Tundra, 0-2.5" Lift, Stage 3 Suspension System

K53033

0 in stock, backorders available

$2,823.24 $2,540.92
