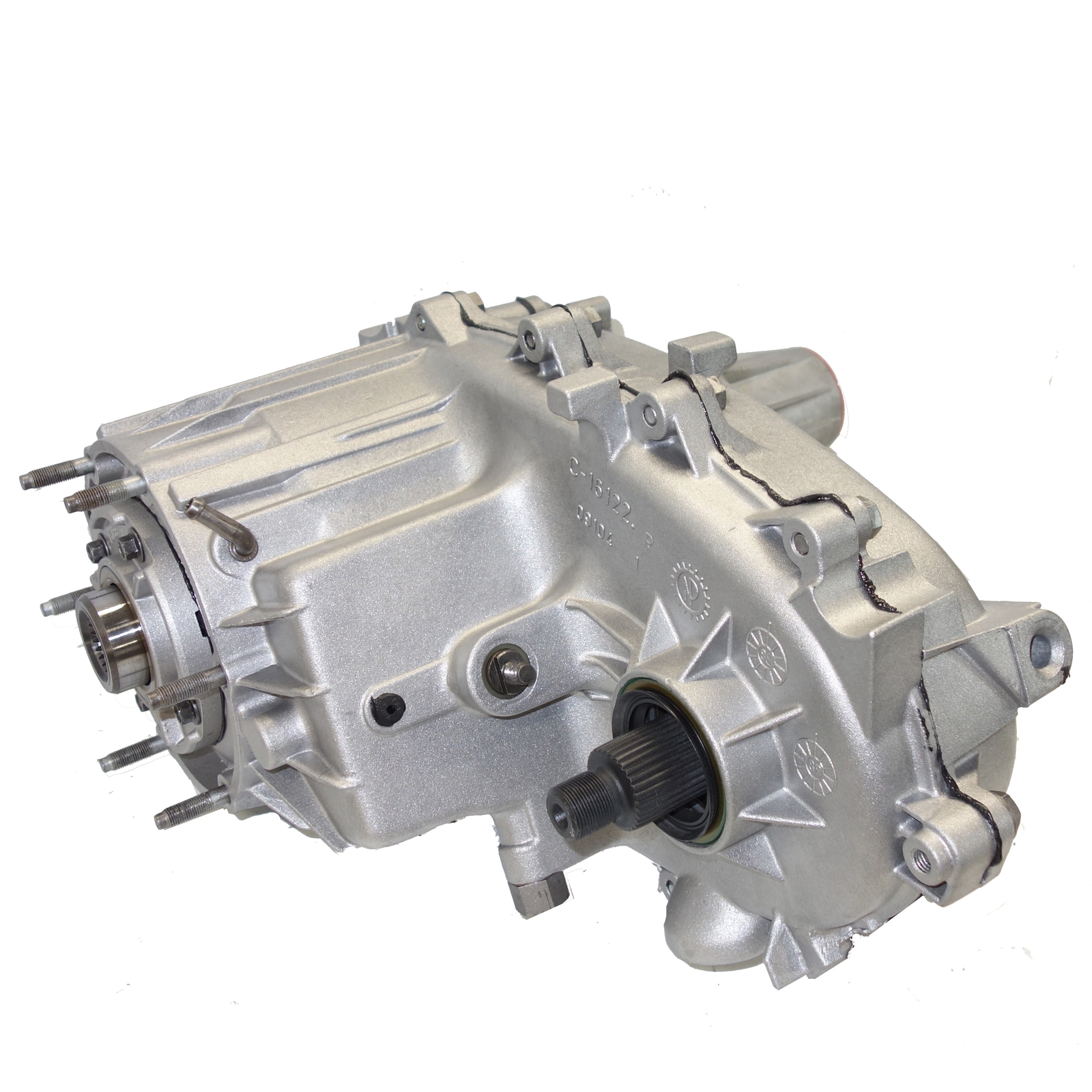

NP242 Transfer Case for Jeep 93-95 Grand Cherokee | RTC242J-4 | RANDYS Worldwide

Product Details

When you buy a Zumbrota transfer case, you gain the confidence, satisfaction, and peace of mind that comes with our standard 2 year, unlimited mileage warranty. Zumbrota transfer cases are rebuilt to unparalleled standards. All units are restored to like-new condition by craftsmen with over 150 years of combined industry experience. Cases and internal components are inspected and tested for signs of wear like cracks, stripped threads, shaft warp, gear wear, and chain stretch. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. All finished units are thoroughly spin tested for shiftability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.

  • All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
  • All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
  • 100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
  • Units are shipped in high density plastic totes to help eliminate in-transit damage.

Technical Notes

  • NV242J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Speedo Hole, 4 Pin Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52097528, 52098531, Hollander Number: 412-284, Other Numbers: UMT208-6

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand Zumbrota Drivetrain
Prop65 Warning WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Keywords .84,23SPL,242,27SPL,412-00284,412-284,52097528,52098531,93,95,CASE,CHEROKEE,EXPOSED,GRAND,INPUT,JEEP,MAIN,NP,NP242,RTC,SLIP,T,TC242J-4,TRANSFERCASE,UMT208-6,W/SPEEDO
Technical Notes
  • NV242J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Speedo Hole, 4 Pin Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52097528, 52098531, Hollander Number: 412-284, Other Numbers: UMT208-6
UPC 883584305491
ProxyNumber 30549
Width 24.00 in
Length 34.00 in
Depth 19.00 in
Weight 80.0000 lb

FAQs

Normally the flow of power goes from the transmission to the rear wheels through the driveshaft. However, when you shift into 4WD that power has to be split between the front  and rear wheels. The transfer case makes this split happen. When you shift into 4WD, gears are engaged to power a chain drive that runs from a gear driving the rear driveshaft to power another set of gears behind the front driveshaft. Once engaged, this driveshaft delivers power to the front differential and out to the front wheels.

The ID tag location varies by manufacturer.

New Venture – Round tag on the back of the unit.

Borg Warner – Tin tag located on the case half bolts.

Magna – Sticker that can be found in a few different locations on unit.

Transfer cases use a combination of Drive, Housing, and Shift Types.

Drive types:

Gear driven transfer cases use a set of gears to send power to the front and rear axle. While gear driven transfer cases are more durable, they are also louder and less practical for smaller vehicles because of their weight.

Chain driven transfer cases use a chain in place of a gear set. Though most chain driven cases only drive one axle, there are case systems designed to drive both axles with a chain. Chains are lighter and quieter, but weaker than gear sets.

Housing types:

Married transfer case housings are bolted to the transmission, often between the output shaft and the main driveshaft. Some married transfer cases share their housing with the transmission.

Independent housings are installed separately from the transmission casing and are connected to the transmission output shaft with another driveshaft.

Shift types:

Manual Shift On-the-Fly (MSOF) transfer cases are controlled with a lever on the driver’s side floor of most vehicles. These transfer cases have two automatic sealed front axle hubs or two manual front axle hub selectors. High 4WD settings can be engaged at low speeds, but low 4WD settings must be engaged when the vehicle is stationary and the transmission is in neutral.

Electronic Shift On-the-Fly (ESOF) transfer cases have a dash-mounted selector, usually a switch or set of buttons. These cases have sealed automatic locking front axle hubs and a transfer case motor. High and low 4WD is engaged in the same ways as a MSOF transfer case.

Brand: Zumbrota Drivetrain

NP242 Transfer Case for Jeep 93-95 Grand Cherokee

RTC242J-4

0 in stock

Get notified when this product is back in stock. Enter your email and click Notify Me below.
$1,850.89

0 in stock

Product Price includes core charge of $600.00
