New from ICON: 96-04 Tacoma & 96-02 4Runner Billet UCAs and Associated Complete Suspension Systems
Take the performance of your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers. The additional droop travel provided by these components translates into superior performance and ride quality for your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. 58500DJ 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT KEY FEATURES: Direct bolt-in design makes for a simple and straightforward installation Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball CNC machined steel taper adapter CNC Machined 6061 Billet Aluminum Construction High-Quality PTFE-lined ¾” FK Rod Ends On-Vehicle Adjustable For Quick And Precise Alignment Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling Matte Anodized Finish Provides Exceptional Corrosion Resistance O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty when used in a complete ICON suspension system 96-04 TACOMA COMPLETE SYSTEMS Several of our popular "Stage" Suspension Systems for First Gen Tacoma are now available featuring these new Billet UCAs, which are listed below. Please note that there are corresponding kits available with our tubular UCAs, as well as lower stages for this platform that do not include UCAs, which have been previously introduced and therefore are not listed here. For your convenience, the downloadable Price & Spec Sheet details all available stages, including these new systems featuring the billet UCAs. STAGE 4 (96-04 TACOMA) K53014B 95.5-04 TACOMA 0-3" STAGE 4 SUSPENSION SYSTEM W BILLET UCA KIT INCLUDES: 58715 96-04 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 58500DJ 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT 51100 96-23 TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT 56502R 96-04 TACOMA 4WD 0-1.5" REAR 2.0 VS RR (2) KEY FEATURES: Increased wheel travel and ride quality over stock Vehicle specific tuned front and rear shocks for superior shock damping and control 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling Adjustable coilovers provide up to 3.5" of front lift height Extended Travel coilovers offer maximum wheel travel 6061 aircraft grade aluminum CNC machined components Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts FK Rod End bearings for extended longevity and minimal deflection Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift STAGE 5 (96-04 TACOMA) K53015B 95.5-04 TACOMA 0-3" STAGE 5 SUSPENSION SYSTEM W BILLET UCA KIT INCLUDES: 58715C 96-04 TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT 58500DJ 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT 51100 96-23 TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT 56502R 96-04 TACOMA 4WD 0-1.5" REAR 2.0 VS RR (2) KEY FEATURES: Increased wheel travel and ride quality over stock Vehicle specific tuned front and rear shocks for superior shock damping and control 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling Front Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard Adjustable coilovers provide up to 3.5" of front lift height Extended Travel coilovers offer maximum wheel travel 6061 aircraft grade aluminum CNC machined components Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts FK Rod End bearings for extended longevity and minimal deflection Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift 96-02 4RUNNER COMPLETE SYSTEMS Several of our popular "Stage" Suspension Systems for 3rd Gen 4Runner are now available featuring these new Billet UCAs, which are listed below. Please note that there are corresponding kits available with our tubular UCAs, as well as lower stages for this platform that do not include UCAs, which have been previously introduced and therefore are not listed here. For your convenience, the downloadable Price & Spec Sheet details all available stages, including these new systems featuring the billet UCAs. STAGE 2 (96-02 4RUNNER) K53132B 96-02 4RUNNER 0-3" STAGE 2 SUSPENSION SYSTEM W BILLET UCA KIT INCLUDES: 58615 96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 58500DJ 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT 53015 96-02 4RUNNER 1" REAR COIL SPRING KIT 56514 96-02 4RUNNER 0-2" REAR 2.0 VS NR (2) KEY FEATURES: Increased wheel travel and ride quality over stock CNC machined 6061 aircraft-grade aluminum components Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability Bolt-on design makes for straightforward install Decreased body roll Vehicle-specific tuned front and rear shocks provide superior damping and control Coilovers are adjustable from 0-3" of lift height ICON engineered rear coils provide 1" of lift and improved performance Shocks are fully rebuildable and revalveable Corrosion resistant CAD plated coilover shock body with 7/8" shaft FK Rod End bearings for extended longevity and minimal deflection STAGE 3 (96-02 4RUNNER) K53133B 96-02 4RUNNER 0-3" STAGE 3 SUSPENSION SYSTEM W BILLET UCA KIT INCLUDES: 58716 96-02 4RUNNER EXT TRAVEL 2.5 VS RR COILOVER KIT 58500DJ 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT 53015 96-02 4RUNNER 1" REAR COIL SPRING KIT 56514 96-02 4RUNNER 0-2" REAR 2.0 VS NR (2) KEY FEATURES: Increased wheel travel and ride quality over stock Bolt-on design makes for straightforward install Decreased body roll Vehicle-specific tuned front and rear shocks provide superior damping and control Coilovers are adjustable from 0-3" of lift height Shocks are fully rebuildable and revalveable Corrosion resistant CAD plated coilover shock body with 7/8" shaft FK Rod End bearings for extended longevity and minimal deflection CNC machined 6061 aircraft-grade aluminum components ICON engineered rear coils provide 1" of lift and improved performance Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability STAGE 4 (96-02 4RUNNER) K53134B 96-02 4RUNNER 0-3" STAGE 4 SUSPENSION SYSTEM W BILLET UCA KIT INCLUDES: 58716 96-02 4RUNNER EXT TRAVEL 2.5 VS RR COILOVER KIT 58500DJ 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT 53015 96-02 4RUNNER 1" REAR COIL SPRING KIT 57800P 96-02 4RUNNER REAR 2.5 VS RR PAIR KEY FEATURES: Increased wheel travel and ride quality over stock Bolt-on design makes for straightforward install Decreased body roll Vehicle-specific tuned front and rear shocks provide superior damping and control Coilovers are adjustable from 0-3" of lift height Shocks are fully rebuildable and revalveable Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish FK Rod End bearings for extended longevity and minimal deflection CNC machined 6061 aircraft-grade aluminum components ICON engineered rear coils provide 1" of lift and improved performance Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability STAGE 5 (96-02 4RUNNER) K53135B 96-02 4RUNNER 0-3" STAGE 5 SUSPENSION SYSTEM W BILLET UCA KIT INCLUDES: 58716C 96-02 4RUNNER EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT 58500DJ 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT 53015 96-02 4RUNNER 1" REAR COIL SPRING KIT 57800CP 96-02 4RUNNER REAR 2.5 VS CDCV RR PAIR KEY FEATURES: Increased wheel travel and ride quality over stock Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability Bolt-on design makes for straightforward install Decreased body roll Vehicle-specific tuned front and rear shocks provide superior damping and control CDCV technology allows for quick and easy compression damping adjustment Coilovers are adjustable from 0-3" of lift height Shocks are fully rebuildable and revalveable Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish FK Rod End bearings for extended longevity and minimal deflection ICON engineered rear coils provide 1" of lift and improved performance CNC machined 6061 aircraft-grade aluminum components
New ICON Products: 2021-24 Ford F150 CDXS Coilovers & Complete Suspension Systems
ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed shocks, coilovers and complete suspension system for 2021-24 Ford F150. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle's performance, optimizing both normal driving conditions and more aggressive scenarios. With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios. Front Coilovers and rear shocks featuring CDXS are now available for 2021-24 Ford F150. In addition, we've configured CDXS versions of our Stage 4 Complete Suspension Systems for F150, making the component selection process easy for all Ford F150 enthusiasts. F150 CDXS FRONT COILOVERS 91823X 21-24 F150 4WD 0-2.75" 2.5 VS RR CDXS COILOVER KIT 91824X 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDXS COILOVER KIT 91825X 21-24 F150 4WD 3" LIFT 2.5 VS RR CDXS COILOVER KIT KEY FEATURES: ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness Increased wheel travel and ride quality over stock 91823X adjustable for 0-2.75" of front lift over stock (Non-Tremor) 91824X adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit 91825X adjustable for 2.75-3.5" of front lift over stock (Non-Tremor) Vehicle-specific tuned for superior shock damping and control External reservoirs to attain cooler operating temperatures during extended off-road use ICON-engineered coil springs 6061 Aircraft grade aluminum CNC machined components Corrosion-resistant CAD plated shock bodies with 7/8" induction hardened, chrome-plated shafts High-strength alloy CNC machined lower bar pins FK rod end bearings for extended longevity and minimal deflection 100% Bolt-on - no cutting or welding necessary for installation F150 CDXS REAR SHOCKS 97720XP 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDXS PAIR 97721XP 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR KEY FEATURES: ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range Nitrogen-charged monotube design with piggyback reservoir One piece digressive piston design with vehicle-specific valving for unsurpassed performance and ride quality on and off-road 7/8” diameter induction hardened, chrome plated shock shaft PTFE-lined spherical bearings and application-specific mounting hardware 6061 aircraft grade aluminum CNC machined components 100% Rebuildable, 100% Revalveable 97720XP compatible with 0-1" of rear lift over stock on most F-150 models 97721XP compatible with 0-2" of rear lift over stock on most 2021-2024 F-150 4WD models NOTE: Above are the NEW PRODUCTS introduced in this NPA. The following Complete Suspension Systems include these plus previously-released ICON products for F150, which should already be in your system STAGE 4 SUSPENSION SYSTEMS WITH CDXS For your ordering convenience we've pre-configured CDXS-equipped versions of our Stage 4 Suspension Systems for F150. These systems are configured the same as our standard Stage 4, but with CDXS instead of CDCV. These slot into the rest of our complete Suspension Systems for Ford F150, which range from Stage 1 to Stage 5. 0-2.75" STAGE 4 WITH CDXS K93114D 21-24 FORD F150 4WD 0-2.75" STAGE 4 SUSPENSION SYSTEM CDXS SYSTEM INCLUDES: 91823X 21-24 F150 4WD 0-2.75" 2.5 VS RR CDXS COILOVER KIT 97720XP 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDXS PAIR KEY FEATURES: Increased wheel travel and ride quality over stock with no change in towing capacity 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness Adjustable coilovers from 0-2.75" of lift height Vehicle specific tuned front and rear shocks for superior damping and vehicle control 6061 Aircraft grade aluminum CNC machined components High strength alloy CNC machined lower bar pins FK rod end bearings for extended longevity and minimal deflection Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish 100% Bolt-on system - no cutting or welding necessary for install 2.75-3.5" STAGE 4 WITH CDXS K93134TD 21-24 FORD F150 4WD 2.75-3.5" STAGE 4 SUSPENSION SYSTEM TUBULAR CDXS K93134D 21-24 FORD F150 4WD 2.75-3.5" STAGE 4 SUSPENSION SYSTEM BILLET CDXS SYSTEMS INCLUDE 91825X 21-24 F150 4WD 3" LIFT 2.5 VS RR CDXS COILOVER KIT 98522DJ 21-24 F150 TUBULAR UCA DJ PRO KIT or 98523DJ 21-24 F150 BILLET UCA DJ PRO KIT 97720XP 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDXS PAIR KEY FEATURES: Adjustable coilovers offer 2.75-3.5" of front lift height over stock 2.5 Series front coilovers with remote reservoirs for improved shock cooling Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment Increased wheel travel and ride quality over stock with no change in towing capacity Vehicle specific tuned front and rear shocks for superior damping and vehicle control All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts FK rod end bearings for extended longevity and minimal deflection High strength alloy CNC machined lower bar pin 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts 6061 Aircraft grade aluminum CNC machined components 100% Bolt-on system - no cutting or welding necessary for install TREMOR 2.5-3" STAGE 4 WITH CDXS K93164TD 21-24 FORD F150 TREMOR 2.5-3" STAGE 4 SUSPENSION SYSTEM TUBULAR CDXS K93164D 21-24 FORD F150 TREMOR 2.5-3" STAGE 4 SUSPENSION SYSTEM BILLET CDXS SYSTEMS INCLUDE 91824X 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDXS COILOVER KIT 98522DJ 21-24 F150 TUBULAR UCA DJ PRO KIT or 98523DJ 21-24 F150 BILLET UCA DJ PRO KIT 97721XP 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR KEY FEATURES: Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock 2.5 Series front coilovers with remote reservoirs for improved shock cooling Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment 20% increase in wheel travel and improved ride quality over stock with no change in towing capacity Vehicle specific tuned front and rear shocks for superior damping and vehicle control All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts FK rod end bearings for extended longevity and minimal deflection High strength alloy CNC machined lower bar pin 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts 6061 Aircraft grade aluminum CNC machined components 100% Bolt-on system - no cutting or welding necessary for install TREMOR 2.5-3" STAGE 4 WITH CDXS & REAR LEAFS K93164TLD 21-24 FORD F150 TREMOR 2.5-3" STAGE 4 SUSPENSION SYS TUBULAR CDXS LEAF PACK K93164LD 21-24 FORD F150 TREMOR 2.5-3" STAGE 4 SUSPENSION SYS BILLET CDXS LEAF PACK SYSTEMS INCLUDE 91824X 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDXS COILOVER KIT 98522DJ 21-24 F150 TUBULAR UCA DJ PRO KIT or 98523DJ 21-24 F150 BILLET UCA DJ PRO KIT 97721XP 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR 91001 10-24 FORD F-150 BILLET 1" LOWERING SHACKLE KIT 198510 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF (2) 95225H 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT KEY FEATURES: Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock 2.5 Series front coilovers with remote reservoirs for improved shock cooling Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment 20% increase in wheel travel and improved ride quality over stock with no change in towing capacity Vehicle specific tuned front and rear shocks for superior damping and vehicle control All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts FK rod end bearings for extended longevity and minimal deflection High strength alloy CNC machined lower bar pin 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts 6061 Aircraft grade aluminum CNC machined components 3 user-adjustable rear spring rates for unique vehicle setups Reduced rear axle wrap and improved ride quality compared to stock leaf springs Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings 100% Bolt-on system - no cutting or welding necessary for install 3.5-4.5" STAGE 4 WITH CDXS K93144TD 21-24 FORD F150 4WD 3.5-4.5" STAGE 4 SUSPENSION SYSTEM TUBULAR CDXS K93144D 21-24 FORD F150 4WD 3.5-4.5" STAGE 4 SUSPENSION SYSTEM BILLET CDXS SYSTEMS INCLUDE 91824X 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDXS COILOVER KIT 98522DJ 21-24 F150 TUBULAR UCA DJ PRO KIT or 98523DJ 21-24 F150 BILLET UCA DJ PRO KIT 97721XP 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR 94000 21-24 F150 4WD FRONT KNUCKLE KIT KEY FEATURES: High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry Adjustable coilovers offer 3.5-4.5" of front lift height over stock 2.5 Series front coilovers with remote reservoirs for improved shock cooling Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity Vehicle specific tuned front and rear shocks for superior damping and vehicle control All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts FK rod end bearings for extended longevity and minimal deflection High strength alloy CNC machined lower bar pin 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts 6061 Aircraft grade aluminum CNC machined components 100% Bolt-on system - no cutting or welding necessary for install 3.5-4.5" STAGE 4 WITH CDXS & REAR LEAFS K93144TLD 21-24 FORD F150 4WD 3.5-4.5" STAGE 4 SUSPENSION SYSTEM TUBULAR CDXS LEAF PACK K93144LD 21-24 FORD F150 4WD 3.5-4.5" STAGE 4 SUSPENSION SYSTEM BILLET CDXS LEAF PACK SYSTEMS INCLUDE: 91824X 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDXS COILOVER KIT 98522DJ 21-24 F150 TUBULAR UCA DJ PRO KIT or 98523DJ 21-24 F150 BILLET UCA DJ PRO KIT 97721XP 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR 94000 21-24 F150 4WD FRONT KNUCKLE KIT 91001 10-24 FORD F-150 BILLET 1" LOWERING SHACKLE KIT 198510 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF (2) 95225H 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT KEY FEATURES: High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry Adjustable coilovers offer 3.5-4.5" of front lift height over stock 2.5 Series front coilovers with remote reservoirs for improved shock cooling Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity Vehicle specific tuned front and rear shocks for superior damping and vehicle control All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts FK rod end bearings for extended longevity and minimal deflection High strength alloy CNC machined lower bar pin 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts 6061 Aircraft grade aluminum CNC machined components 3 user-adjustable rear spring rates for unique vehicle setups Reduced rear axle wrap and improved ride quality compared to stock leaf springs Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings 100% Bolt-on system - no cutting or welding necessary for install

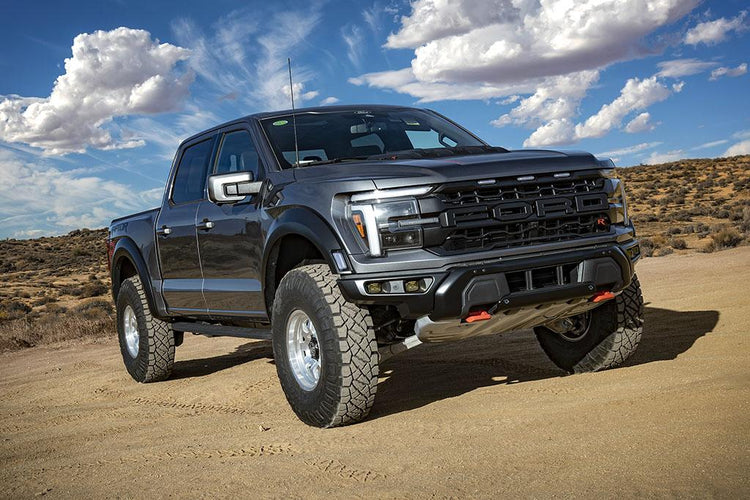

New ICON Products: 2021-24 Ford F150 Raptor 2-Inch Performance Suspension Systems
Transform your Gen3 F-150 Raptor’s performance and stance with ICON Vehicle Dynamics performance suspension components and systems. Our NEW ICON performance front coil springs are designed to retrofit the Raptor's OE electronic coilover shocks and utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models. These springs along with our previously-released Triple Rate Rear Coil Springs and Billet Upper Control Arms ensure improved performance along with a more aggressive stance and increased ground clearance. In addition to these components, we have configured two stages of complete suspension systems to make configuring your Raptor suspension performance package easy and hassle-free. Keep scrolling to see each of these Components and Complete Suspension System Stages for Gen 3 Raptor. Use the download buttons below to grab all of the important product information, data, images, and more to add these items to your website and inform your customers! DOWNLOAD PRICING & SPECS DOWNLOAD PRODUCT IMAGES DOWNLOAD INSTRUCTIONS PERFORMANCE SUSPENSION COMPONENTS 2-INCH LIFT FRONT COIL SPRINGS 95232 21-24 F-150 RAPTOR FRONT SPRING KIT Elevate the performance and stance of your 2021-2024 Gen3 F-150 Raptor with these vehicle-specific front coil springs, designed to install directly onto the OE front coilovers. Engineered for a precise fit, these springs yield 2.25" front lift on the Raptor and 2" of lift on Raptor R, providing enhanced ground clearance and distance to bump, fitment of more aggressive wheel and tire combinations, and a commanding presence on and off-road. Compatible with all variations of the OE coilovers, these springs maintain your vehicle’s electronic shock functionality, ensuring uncompromised ride quality and control. Constructed with a linear rate for consistent performance and exceptional handling, they strike the perfect balance between comfort and capability. Featuring a durable, dual-stage powder coating, these springs are built to resist corrosion in the harshest environments, offering long-lasting durability. Installation is straightforward and bolt-on, requiring no cutting or modifications, allowing you to upgrade your suspension easily. Backed by a lifetime guarantee against sagging or breakage, these springs are designed to deliver reliability and performance you can count on for every mile. KEY FEATURES: Vehicle-specific design for the Gen3 F-150 Raptor OE front coilovers Install onto stock front shock absorbers for 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R Compatible with all versions of available OE coilovers Maintains electronic shock functionality Linear rate coil springs Bolt-on installation with no cutting required Dual-stage powder coating for maximum corrosion resistance Lifetime guarantee against sagging/breakage BILLET UPPER CONTROL ARMS WITH DELTA JOINT PRO ICON Billet Upper Control Arms for Gen 3 Raptor were recently introduced in a separate New Product Announcement. In case you missed it, CLICK HERE for complete product information. TRIPLE RATE REAR COIL SPRINGS ICON Triple Rate Rear Coil Springs for Gen 3 Raptor, including both standard and "Overland" spring rates, were recently introduced in a separate announcement. In case you missed it, CLICK HERE for complete product information. COMPLETE SUSPENSION SYSTEMS STAGE 1 K93171 21-24 FORD F150 RAPTOR 2-2.25" STAGE 1 SUSPENSION SYSTEM K93171X 21-24 FORD F150 RAPTOR 2-2.25" STAGE 1 SUSPENSION SYSTEM OVERLAND Transform your Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 1 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality. The standard Stage 1 configuration features triple-rate rear coil springs tailored to deliver a 1" of rear lift on Raptors without additional rear weight. The "Overland" version of Stage 1 is configured for more upfitted Raptors that have constant load in the bed, with triple-rate rear coil springs tailored to deliver a 1" rear lift on Raptors with approximately 300lbs of additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability. Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you. SYSTEMS INCLUDE: 95232 21-24 F-150 RAPTOR FRONT SPRING KIT 95230 21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT or 95231 21-24 F-150 RAPTOR TRIPLE RATE OVERLAND REAR COIL SPRING KIT KEY FEATURES: Vehicle-specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R Compatible with all versions of available OE shock absorbers Maintains electronic shock functionality Linear rate front coil springs Triple-rate rear coil springs with ICON-engineered droop, ride, and overload rates Standard rear springs yield 1" rear lift height over stock on Raptors without additional weight in the rear Overland rear springs yield 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel Tapered wire rear coil design achieves maximum travel and efficiency Significantly improves on- and off-road ride quality and performance over stock Bolt-on installation with no cutting required Dual-stage powder coating for maximum corrosion resistance Lifetime guarantee against sagging/breakage STAGE 2 K93172 21-24 FORD F150 RAPTOR 2-2.25" STAGE 2 SUSPENSION SYSTEM K93172X 21-24 FORD F150 RAPTOR 2-2.25" STAGE 2 SUSPENSION SYSTEM OVERLAND Transform your 2021-2024 Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 2 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-2024 Ford F-150 Raptor with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The standard Stage 2 configuration features triple-rate rear coil springs tailored to deliver a 1" of rear lift on Raptors without additional rear weight. The "Overland" version of Stage 2 is configured for more upfitted Raptors that have constant load in the bed, with triple-rate rear coil springs tailored to deliver a 1" rear lift on Raptors with approximately 300lbs of additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability. Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you. SYSTEMS INCLUDE 95232 21-24 F-150 RAPTOR FRONT SPRING KIT 98564DJ 21-24 F-150 RAPTOR BILLET UCA DJ PRO KIT 95230 21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT or 95231 21-24 F-150 RAPTOR TRIPLE RATE OVERLAND REAR COIL SPRING KIT KEY FEATURES: Vehicle-specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R Compatible with all versions of available OE shock absorbers Maintains electronic shock functionality Linear rate front coil springs Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation Triple-rate rear coil springs with ICON-engineered droop, ride, and overload rates Standard rear springs yield 1" rear lift height over stock on Raptors without additional weight in the rear Overland rear springs yield 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel Tapered wire rear coil design achieves maximum travel and efficiency Significantly improves on- and off-road ride quality and performance over stock Bolt-on installation with no cutting required Dual-stage powder coating for maximum corrosion resistance Lifetime guarantee against sagging/breakage TECH NOTES The following tech and fitment data applies to all of the above Suspension System Stages: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Tires (w/o 37 Package): 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Tires (w/ 37 Package): 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur APPLICATION NOTE #181 (for "Overland" Rear Coil Springs): Advertised lift height ranges are for a vehicle with approx 300lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range. APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers. TECH NOTE: Provides 2.25" of front lift over stock on F-150 Raptor TECH NOTE: Provides 2" of front lift over stock on F-150 Raptor R
NEW ICON Products: 2024 Lexus GX550 CDXS Coilovers & Complete Suspension Systems
NEW PRODUCTS: 2024 Lexus GX550 CDXS Coilovers & Complete Suspension Systems ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed shocks, coilovers and complete suspension system for 2024 Lexus GX550. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle's performance, optimizing both normal driving conditions and more aggressive scenarios. With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios. Front Coilovers and rear shocks featuring CDXS are now available for 2024 Lexus GX550. In addition, we've configured CDXS versions of our Stage 8 and Stage 9 Complete Suspension Systems for the GX550, making the component selection process easy for all Lexus GX550 enthusiasts. DOWNLOAD PRICING & SPECS DOWNLOAD PRODUCT IMAGES DOWNLOAD INSTRUCTIONS GX550 CDXS SHOCKS & COILOVERS GX550 CDXS FRONT COILOVERS 58790X 24 GX550 FRONT 2.5 VS RR CDXS COILOVER KIT KEY FEATURES: CDXS provides independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness. Vehicle-specific shock length and pairing with front differential drop yields maximum wheel travel Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock 2.5" diameter shock bodies with remote reservoirs Remote reservoirs maintain cooler operating temperatures during extended off-road use ICON-engineered coil springs 6061 Aircraft grade aluminum CNC machined components Corrosion-resistant CAD plated shock bodies with 7/8" diameter shafts FK rod end bearings for extended longevity and minimal deflection Fully rebuildable and re-tunable GX550 CDXS REAR SHOCKS 57870XP 24 LC250/24 GX550 0-3" REAR 2.5 VS CDXS RR PAIR KEY FEATURES: CDXS provides independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness. ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range Nitrogen-charged monotube design with remote reservoir One-piece digressive piston design with vehicle-specific valving for unsurpassed performance and ride quality on and off-road 7/8” diameter induction hardened, chrome-plated shock shaft Rubber dust boot included for added shaft protection PTFE-lined spherical bearings and application-specific mounting hardware 6061 aircraft grade aluminum CNC machined components Fully rebuildable and re-tunable
New ICON Products: 2024 Toyota Landcruiser 250 CDXS Coilovers & Complete Suspension Systems
ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed coilovers and complete suspension system for 2024 Toyota Landcruiser 250. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle's performance, optimizing both normal driving conditions and more aggressive scenarios. With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression-damping performance over a wide range of driving scenarios. LEARN MORE ABOUT CDXS CDXS NOW AVAILABLE FOR LANDCRUISER 250 Front Coilovers and rear shocks featuring CDXS are now available for 2024 Toyota Landcruiser 250. In addition, we've configured CDXS versions of our Stage 8 and Stage 9 Complete Suspension Systems for LC250, making the component selection process easy for all Landcruiser enthusiasts. Keep scrolling to see each of the new CDXS equipped shocks, Coilovers and Complete Suspension System Stages for Landcruiser 250. Use the download buttons below to grab all of the important product information, data, images and more to add these items to your website and inform your customers! DOWNLOAD PRICING & SPECS DOWNLOAD PRODUCT IMAGES DOWNLOAD INSTRUCTIONS
